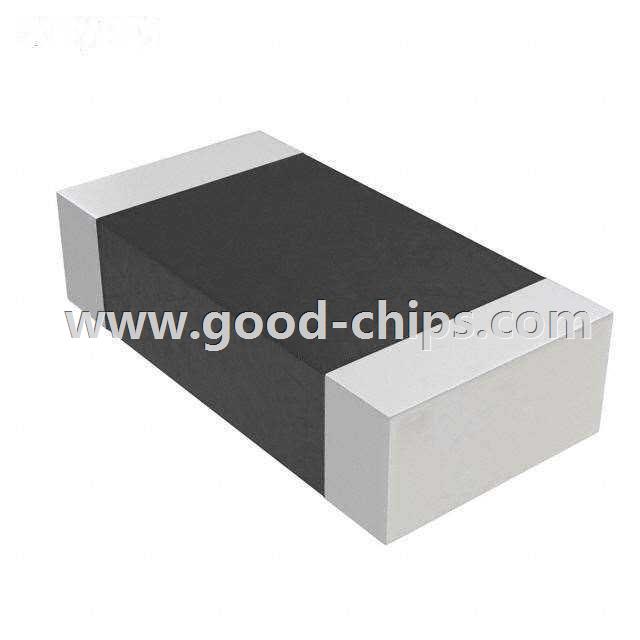

HVCB0603JDC220M

HVCB0603JDC220M
Manufacturer Part Number:HVCB0603JDC220M
Manufacturer:
Product Category:Chip Resistor - Surface Mount
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:RES SMD 220M OHM 5% 0.06W 0603
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: HVCB0603JDC220M Datasheet
HVCB0603JDC220M´s Parameters
Internal Part Number898-HVCB0603JDC220M
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS Compliance
CategoryResistors
FamilyChip Resistor - Surface Mount
ManufacturerStackpole Electronics Inc.
SeriesHVC
PackagingTape & Reel (TR)
Part StatusActive
Resistance (Ohms)220M
Tolerance±5%
Power (Watts)0.06W
CompositionThick Film
FeaturesHigh Voltage, Pulse Withstanding
Temperature Coefficient±50ppm/°C
Operating Temperature-55°C ~ 150°C
Package / Case0603 (1608 Metric)
Supplier Device Package0603
Size / Dimension0.063" L x 0.031" W (1.60mm x 0.79mm)
Height0.020" (0.51mm)
Number of Terminations2
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartHVCB0603JDC220M
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

HVCB0603JDC220M is in stock for immediate shipping now. We are the distributor of Stackpole Electronics Inc. all series components. The condition of HVCB0603JDC220M is new and unused, you can buy HVCB0603JDC220M Stackpole Electronics Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for HVCB0603JDC220M.
