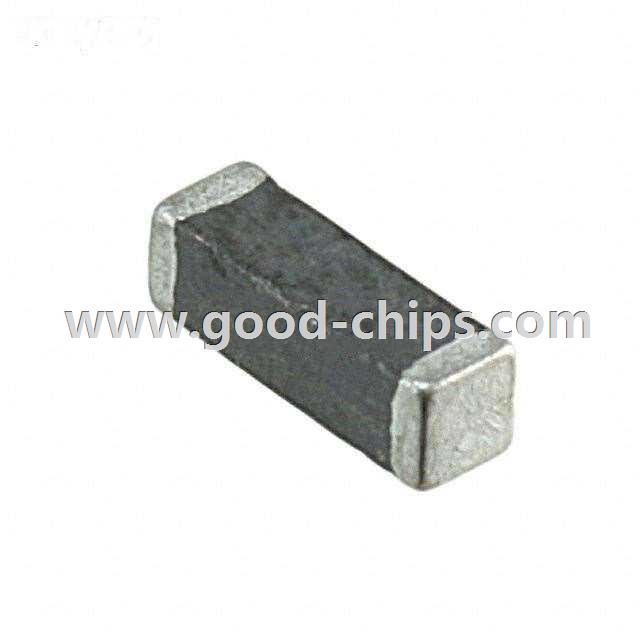

Manufacturer Part Number: | HZ1806K102R-10 |
---|---|
Manufacturer: | Laird-Signal Integrity Products |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 15010 Pieces |
Unit Price: | Quote by Email |
Description: | 1 kOhm Impedance Ferrite Bead 1806 (4516 Metric) Surface Mount 1.5A 1 Lines 150 mOhm Max DCR -40°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | HZ1806K102R-10 Datasheet |
Internal Part Number | 898-HZ1806K102R-10 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | HZ Series | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | Laird-Signal Integrity Products | |
Series | HZ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | - | |
Number of Lines | 1 | |
Impedance @ Frequency | 1 kOhm @ 100MHz | |
Current Rating (Max) | 1.5A | |
DC Resistance (DCR) (Max) | 150 mOhm | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Package / Case | 1806 (4516 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.071" (1.80mm) | |
Size / Dimension | 0.177" L x 0.063" W (4.50mm x 1.60mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | HZ1806K102R-10 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
HZ1806K102R-10 is in stock for immediate shipping now. We are the distributor of Laird-Signal Integrity Products all series components. The condition of HZ1806K102R-10 is new and unused, you can buy HZ1806K102R-10 Laird-Signal Integrity Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for HZ1806K102R-10.
