Manufacturer Part Number: | IL41050TA-1E |
---|---|
Manufacturer: | NVE Corp/Sensor Products |
Product Category: | Digital Isolators |
Available Quantity: | 9807 Pieces |
Unit Price: | Quote by Email |
Description: | CAN Digital Isolator 2500Vrms 2 Channel 1Mbps 30kV/µs CMTI 16-SSOP (0.154", 3.90mm Width) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IL41050TA-1E Datasheet |
Internal Part Number | 898-IL41050TA-1E | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | How IsoLoop Isolators Work Isolator Transient Immunity IsoLoop Reliability Isolator High-Voltage Standards Isolator High-Voltage Endurance | |
Online Catalog | IL41050 Series | |
Category | Isolators | |
Family | Digital Isolators | |
Manufacturer | NVE Corp/Isolation Products | |
Series | IsoLoop® | |
Packaging | Tube | |
Part Status | Active | |
Technology | GMR (Giant Magnetoresistive) | |
Type | CAN | |
Isolated Power | No | |
Number of Channels | 2 | |
Inputs - Side 1/Side 2 | 1/1 | |
Channel Type | Unidirectional | |
Voltage - Isolation | 2500Vrms | |
Common Mode Transient Immunity (Min) | 30kV/µs | |
Data Rate | 1Mbps | |
Propagation Delay tpLH / tpHL (Max) | - | |
Pulse Width Distortion (Max) | - | |
Rise / Fall Time (Typ) | - | |
Voltage - Supply | 3 V ~ 5.5 V, 4.75 V ~ 5.25 V | |
Operating Temperature | -55°C ~ 125°C | |

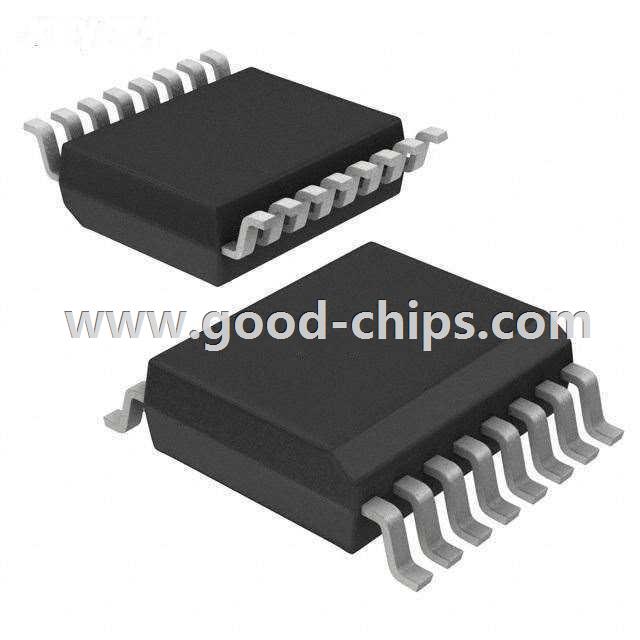

Package / Case | 16-SSOP (0.154", 3.90mm Width) | |
Supplier Device Package | 16-QSOP | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IL41050TA-1E | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IL41050TA-1E is in stock for immediate shipping now. We are the distributor of NVE Corp/Sensor Products all series components. The condition of IL41050TA-1E is new and unused, you can buy IL41050TA-1E NVE Corp/Sensor Products with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IL41050TA-1E.
