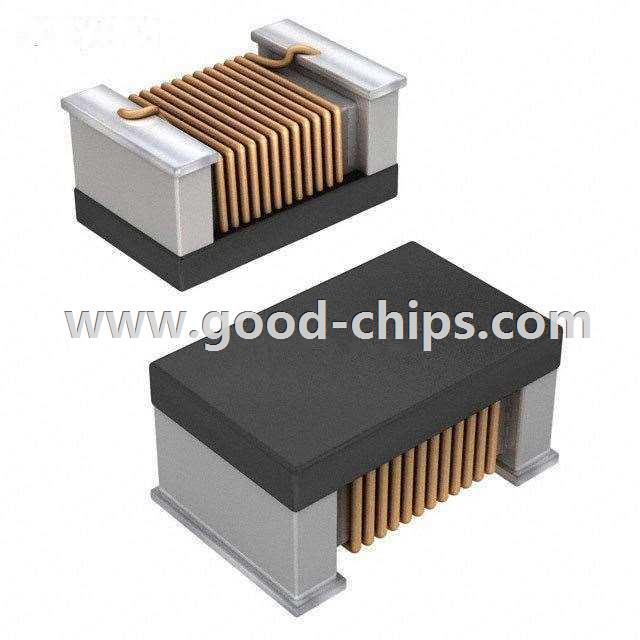

-Unshielded-Inductor.jpg)
| Manufacturer Part Number: | IMC0805ER2N2S01 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2.2nH Unshielded Wirewound Inductor 800mA 60 mOhm Max 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IMC0805ER2N2S01 Datasheet |
| Internal Part Number | 898-IMC0805ER2N2S01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Vishay Dale | |
| Series | IMC-0805-01 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ceramic | |
| Inductance | 2.2nH | |
| Tolerance | ±0.3nH | |
| Current Rating | 800mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 60 mOhm Max | |
| Q @ Freq | 50 @ 1GHz | |
| Frequency - Self Resonant | 6GHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |
| Frequency - Test | 250MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric) | |
| Size / Dimension | 0.079" L x 0.050" W (2.00mm x 1.25mm) | |
| Height - Seated (Max) | 0.055" (1.40mm) | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IMC0805ER2N2S01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IMC0805ER2N2S01 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of IMC0805ER2N2S01 is new and unused, you can buy IMC0805ER2N2S01 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IMC0805ER2N2S01.
