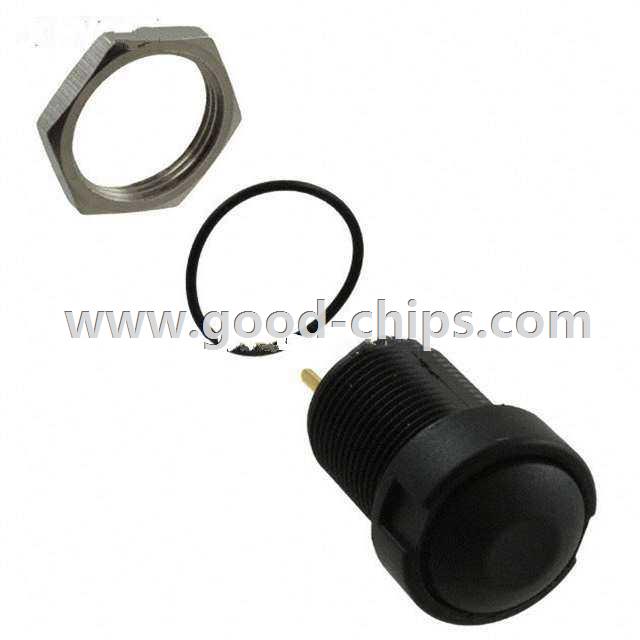

| Manufacturer Part Number: | IMR7P422 |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9113 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard Panel Mount, Front |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IMR7P422 Datasheet |
| Internal Part Number | 898-IMR7P422 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | IM Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Apem Inc. | |
| Series | IM | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 3A (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Round, Button, Domed | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | PC Pin | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Epoxy Sealed Terminals | |
| Panel Cutout Dimensions | Circular - 13.60mm Dia | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 25,000 Cycles | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IMR7P422 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IMR7P422 is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of IMR7P422 is new and unused, you can buy IMR7P422 Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IMR7P422.
