| Manufacturer Part Number: | INA199B2RSWR |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

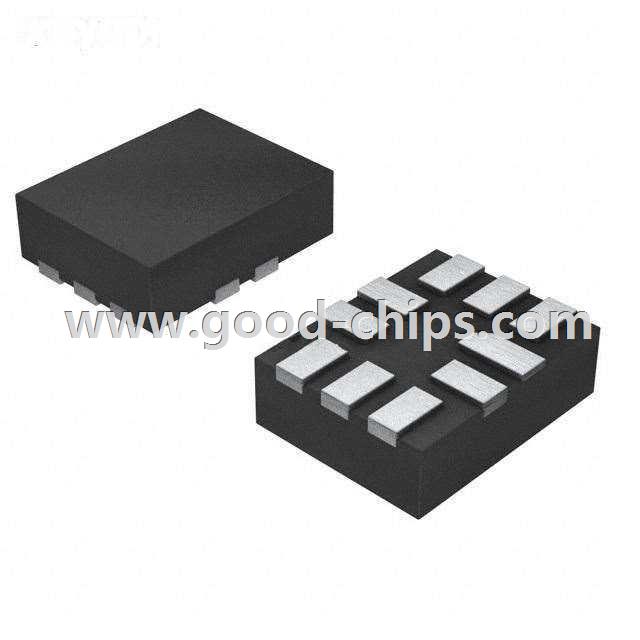

| Description: | Current Sense Amplifier 1 Circuit 10-UQFN (1.8x1.4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | INA199B2RSWR Datasheet |
| Internal Part Number | 898-INA199B2RSWR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | INA21x 30/Jun/2016 | |
| Manufacturer Product Page | INA199B2RSWR Specifications | |
| Online Catalog | Current Sense | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| Series | Zero-Drift | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Amplifier Type | Current Sense | |
| Number of Circuits | 1 | |
| Output Type | - | |
| Slew Rate | 0.4 V/µs | |
| Gain Bandwidth Product | 30kHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 28µA | |
| Voltage - Input Offset | 5µV | |
| Current - Supply | 65µA | |
| Current - Output / Channel | - | |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 26 V | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-UFQFN | |
| Supplier Device Package | 10-UQFN (1.8x1.4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | INA199B2RSWR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
INA199B2RSWR is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of INA199B2RSWR is new and unused, you can buy INA199B2RSWR Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for INA199B2RSWR.
