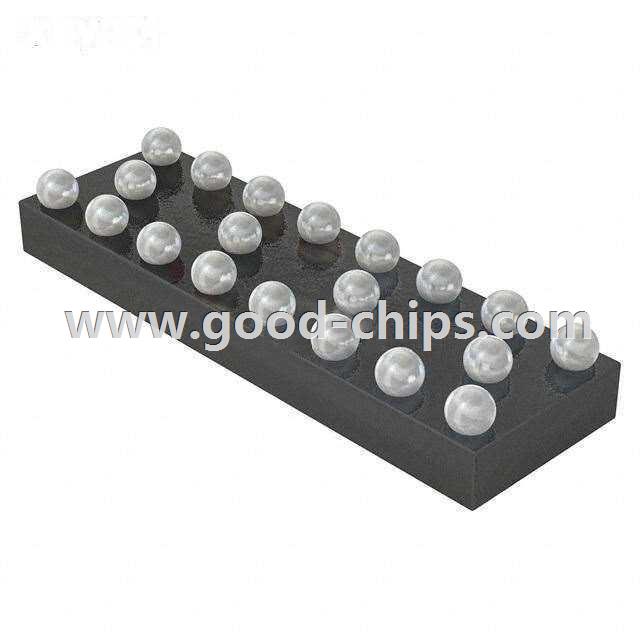

| Manufacturer Part Number: | IP3088CX20,135 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LC (Pi) EMI Filter 5th Order Low Pass 8 Channel L = 40nH (Total), C = 42pF (Total) 30mA 20-WFBGA, WLCSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IP3088CX20,135 Datasheet |
| Internal Part Number | 898-IP3088CX20,135 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EOL 30/Dec/2015 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | 5th | |
| Technology | LC (Pi) | |
| Number of Channels | 8 | |
| Center / Cutoff Frequency | 175MHz (Cutoff) | |
| Attenuation Value | 40dB @ 800MHz ~ 1.5GHz | |
| Resistance - Channel (Ohms) | 18 | |
| Current | 30mA | |
| Values | L = 40nH (Total), C = 42pF (Total) | |
| ESD Protection | Yes | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | GSM, LAN, PCS, WAN | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-WFBGA, WLCSP | |
| Size / Dimension | 0.156" L x 0.050" W (3.96mm x 1.28mm) | |
| Height | 0.028" (0.70mm) | |
| Standard Package | 4,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IP3088CX20,135 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IP3088CX20,135 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of IP3088CX20,135 is new and unused, you can buy IP3088CX20,135 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IP3088CX20,135.
