Manufacturer Part Number: | IPD60R385CPBTMA1 |
---|---|
Manufacturer: | Infineon Technologies |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 650V 9A TO-252 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | IPD60R385CPBTMA1 Datasheet |
Internal Part Number | 898-IPD60R385CPBTMA1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Wafer Dia/Halogen free mold Chg 2/Mar/2016 | |
PCN Packaging | Cover Tape Width Update 17/Jun/2015 Cover Tape Width Cancellation 14/Jul/2015 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | Infineon Technologies | |
Series | OptiMOS™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 650V | |
Current - Continuous Drain (Id) @ 25°C | 9A (Tc) | |
Rds On (Max) @ Id, Vgs | 385 mOhm @ 5.2A, 10V | |
Vgs(th) (Max) @ Id | 3.5V @ 340µA | |
Gate Charge (Qg) @ Vgs | 22nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 790pF @ 100V | |
Power - Max | 83W | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

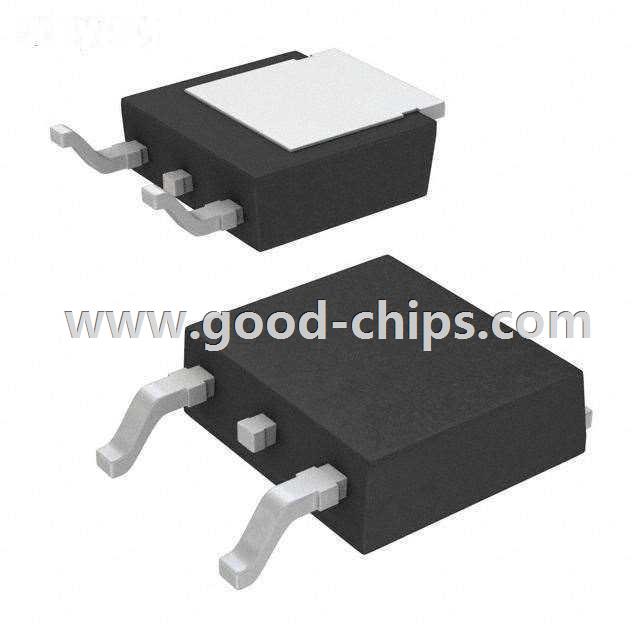

Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
Supplier Device Package | PG-TO252-3 | |
Standard Package | 2,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | IPD60R385CPBTMA1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
IPD60R385CPBTMA1 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IPD60R385CPBTMA1 is new and unused, you can buy IPD60R385CPBTMA1 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IPD60R385CPBTMA1.
