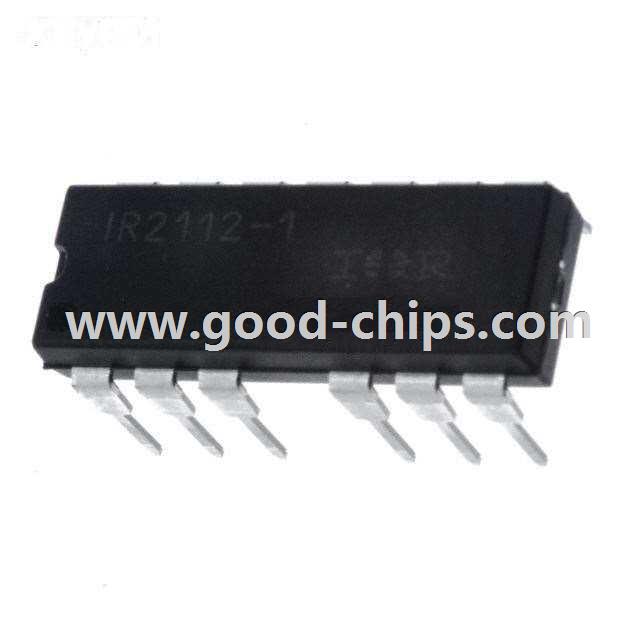

| Manufacturer Part Number: | IR2112-1PBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC MOSFET DRVR HI/LO SIDE 14DIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR2112-1PBF Datasheet |
| Internal Part Number | 898-IR2112-1PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | IGBT, N-Channel MOSFET | |
| Voltage - Supply | 10 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 6V, 9.5V | |
| Current - Peak Output (Source, Sink) | 250mA, 500mA | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 600V | |
| Rise / Fall Time (Typ) | 80ns, 40ns | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |
| Package / Case | 14-DIP (0.300", 7.62mm), 13 Leads | |
| Supplier Device Package | 14-PDIP | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR2112-1PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR2112-1PBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR2112-1PBF is new and unused, you can buy IR2112-1PBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR2112-1PBF.
