| Manufacturer Part Number: | IR3101 |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Gate Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC POWER MODULE 1.6A 500V 11-SIP |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR3101 Datasheet |
| Internal Part Number | 898-IR3101 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| PCN Obsolescence/ EOL | IR3101/IR3103 Devices 20/Jan/2014 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Gate Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | iMOTION™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Driven Configuration | Half-Bridge | |
| Channel Type | Independent | |
| Number of Drivers | 2 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 10 V ~ 20 V | |
| Logic Voltage - VIL, VIH | 0.8V, 2.9V | |
| Current - Peak Output (Source, Sink) | - | |
| Input Type | Non-Inverting | |
| High Side Voltage - Max (Bootstrap) | 500V | |
| Rise / Fall Time (Typ) | - | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

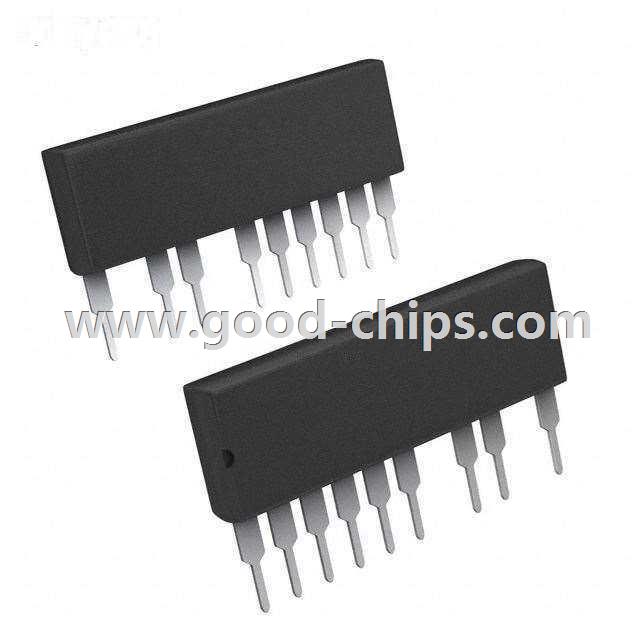

| Package / Case | 11-SIP (9 Leads) | |
| Supplier Device Package | 11-SIP | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR3101 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR3101 is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR3101 is new and unused, you can buy IR3101 Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR3101.
