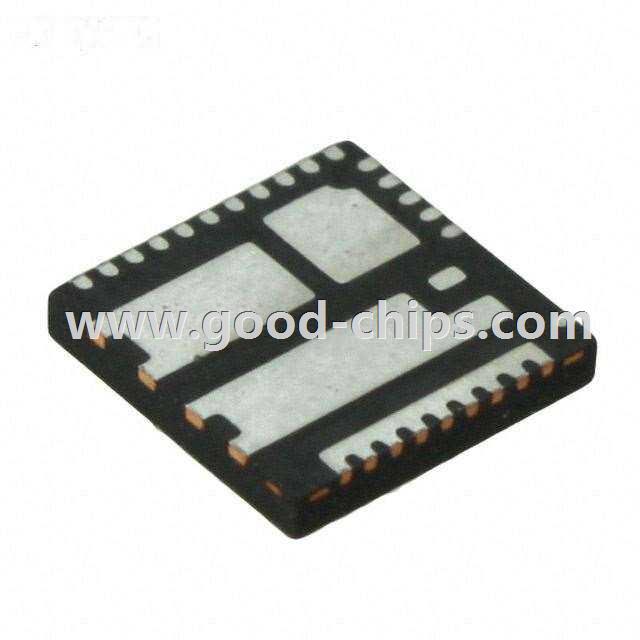

| Manufacturer Part Number: | IR3550MTRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | PMIC - Full, Half-Bridge Drivers |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC DRIVER GATE 60A PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IR3550MTRPBF Datasheet |
| Internal Part Number | 898-IR3550MTRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Small PowIR MOSFETS Value Proposition High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Featured Product | IR3550 / IR3553 Integrated PowIRstage™ | |
| PCN Assembly/Origin | PowlRstage Backend Wafer Processing 23/Oct/2013 Additional Assembly/Test Site 30/Apr/2014 | |
| PCN Other | Multiple Changes 28/Jan/2014 | |
| Online Catalog | Full, Half-Bridge Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Full, Half-Bridge Drivers | |
| Manufacturer | Infineon Technologies | |
| Series | PowIRstage® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Configuration | Half Bridge | |
| Applications | Synchronous Buck Converters, Voltage Regulators | |
| Interface | PWM | |
| Load Type | Inductive | |
| Technology | Power MOSFET | |
| Rds On (Typ) | - | |
| Current - Output / Channel | 60A | |
| Current - Peak Output | 90A | |
| Voltage - Supply | 4.5 V ~ 7 V | |
| Voltage - Load | 4.5 V ~ 15 V | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |
| Features | Bootstrap Circuit, Diode Emulation, Status Flag | |
| Fault Protection | Over Temperature, Shoot-Through, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-PowerVFQFN | |
| Supplier Device Package | 32-PQFN (6x6) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IR3550MTRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IR3550MTRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IR3550MTRPBF is new and unused, you can buy IR3550MTRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IR3550MTRPBF.
