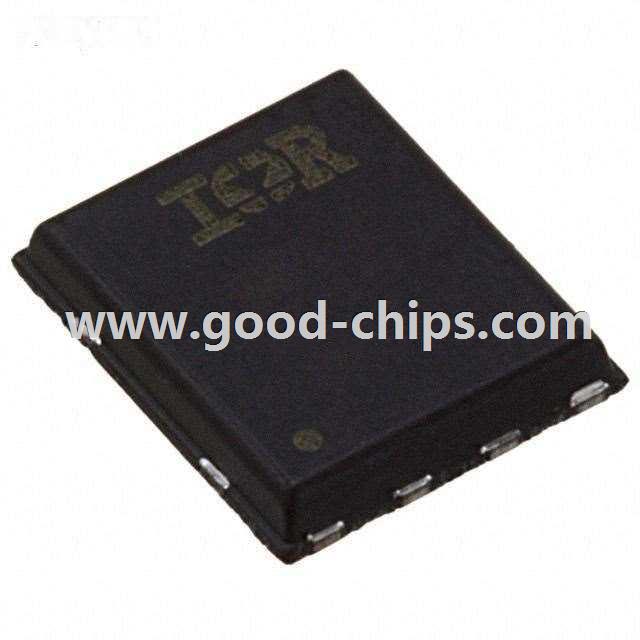

| Manufacturer Part Number: | IRFH4201TRPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 25V 49A 8PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFH4201TRPBF Datasheet |
| Internal Part Number | 898-IRFH4201TRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power MOSFETs 40V and Below | |
| Featured Product | FastIRFET™ Power MOSFET | |
| PCN Obsolescence/ EOL | Multi Mosfet EOL 2/Mar/2016 | |
| PCN Assembly/Origin | Mosfet Backend Wafer Processing 23/Oct/2013 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Last Time Buy | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 25V | |
| Current - Continuous Drain (Id) @ 25°C | 49A (Ta) | |
| Rds On (Max) @ Id, Vgs | 0.95 mOhm @ 50A, 10V | |
| Vgs(th) (Max) @ Id | 2.1V @ 150µA | |
| Gate Charge (Qg) @ Vgs | 94nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 6100pF @ 13V | |
| Power - Max | 3.5W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | 8-PQFN (5x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFH4201TRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFH4201TRPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFH4201TRPBF is new and unused, you can buy IRFH4201TRPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFH4201TRPBF.
