| Manufacturer Part Number: | IRFH5300TR2PBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 30V 40A PQFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFH5300TR2PBF Datasheet |
| Internal Part Number | 898-IRFH5300TR2PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Discrete Power MOSFETs 40V and Below | |
| Design Resources | IRFH5300TR2PBF Saber Model IRFH5300TR2PBF Spice Model | |
| PCN Obsolescence/ EOL | Multiple Devices 13/Nov/2013 | |
| PCN Assembly/Origin | Backend Wafer Transfer 23/Oct/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Cut Tape (CT) | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 30V | |
| Current - Continuous Drain (Id) @ 25°C | 40A (Ta), 100A (Tc) | |
| Rds On (Max) @ Id, Vgs | 1.4 mOhm @ 50A, 10V | |
| Vgs(th) (Max) @ Id | 2.35V @ 150µA | |
| Gate Charge (Qg) @ Vgs | 120nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 7200pF @ 15V | |
| Power - Max | 3.6W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |

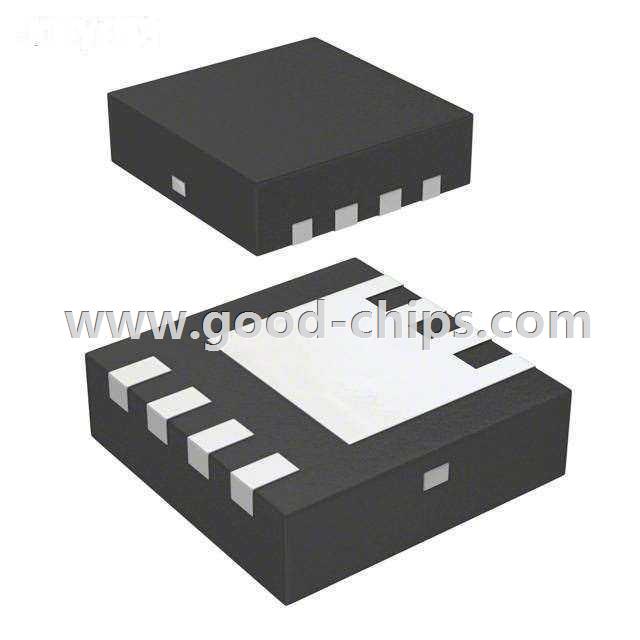

| Package / Case | 8-PowerVDFN | |
| Supplier Device Package | PQFN (5x6) Single Die | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFH5300TR2PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFH5300TR2PBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFH5300TR2PBF is new and unused, you can buy IRFH5300TR2PBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFH5300TR2PBF.
