| Manufacturer Part Number: | IRFS4010-7PPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9277 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 100V 190A D2PAK-7 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRFS4010-7PPBF Datasheet |
| Internal Part Number | 898-IRFS4010-7PPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRFS4010-7PPBF Saber Model IRFS4010-7PPBF Spice Model | |
| PCN Assembly/Origin | Mosfet Backend Wafer Processing 23/Oct/2013 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| PCN Part Status Change | Pkg Type Disc 16/May/2016 | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | HEXFET® | |
| Packaging | Tube | |
| Part Status | Not Available | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 100V | |
| Current - Continuous Drain (Id) @ 25°C | 190A (Tc) | |
| Rds On (Max) @ Id, Vgs | 4 mOhm @ 110A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 230nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 9830pF @ 50V | |
| Power - Max | 380W | |
| Operating Temperature | -55°C ~ 175°C (TJ) | |
| Mounting Type | Surface Mount | |

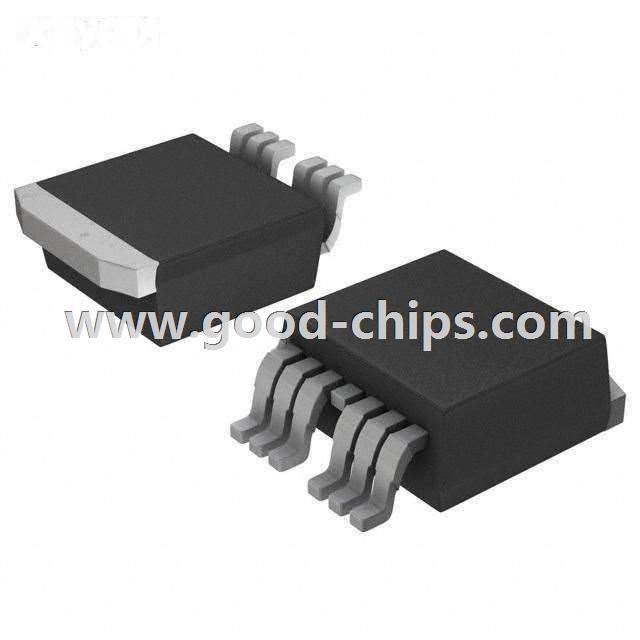

| Package / Case | TO-263-7, D²Pak (6 Leads + Tab), TO-263CB | |
| Supplier Device Package | D2PAK | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRFS4010-7PPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRFS4010-7PPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRFS4010-7PPBF is new and unused, you can buy IRFS4010-7PPBF Infineon Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IRFS4010-7PPBF.
