| Manufacturer Part Number: | IRG4PC50UD-EPBF |
|---|---|
| Manufacturer: | Infineon Technologies |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9036 Pieces |
| Unit Price: | Quote by Email |

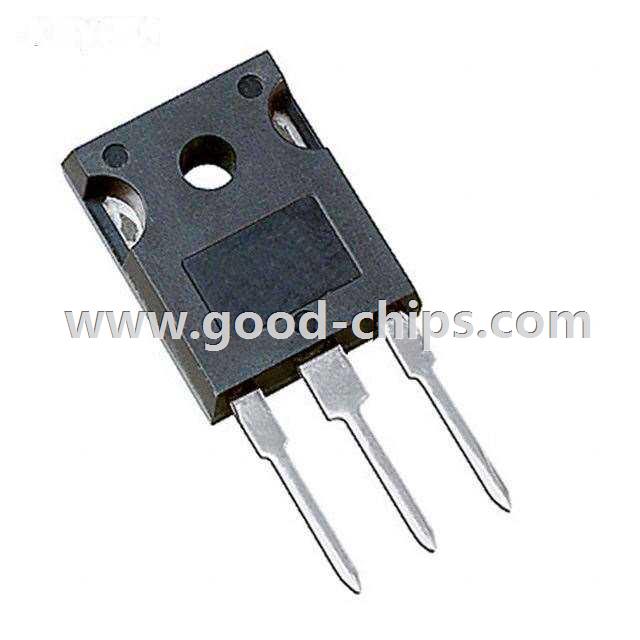

| Description: | IGBT 600V 55A 200W Through Hole TO-247AC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IRG4PC50UD-EPBF Datasheet |
| Internal Part Number | 898-IRG4PC50UD-EPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | IGBT Primer Device and Applications High Voltage Integrated Circuits (HVIC Gate Drivers) | |
| Design Resources | IRG4PC50UD-EPBF Saber Model IRG4PC50UD-EPBF Spice Model | |
| PCN Assembly/Origin | Tin Electro-Plating Metal 04/Jan/2015 | |
| PCN Packaging | Package Drawing Update 19/Aug/2015 | |
| Online Catalog | Standard IGBTs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | Infineon Technologies | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 55A | |
| Current - Collector Pulsed (Icm) | 220A | |
| Vce(on) (Max) @ Vge, Ic | 2V @ 15V, 27A | |
| Power - Max | 200W | |
| Switching Energy | 990µJ (on), 590µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 180nC | |
| Td (on/off) @ 25°C | 46ns/140ns | |
| Test Condition | 480V, 27A, 5 Ohm, 15V | |
| Reverse Recovery Time (trr) | 50ns | |
| Package / Case | TO-247-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-247AC | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IRG4PC50UD-EPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IRG4PC50UD-EPBF is in stock for immediate shipping now. We are the distributor of Infineon Technologies all series components. The condition of IRG4PC50UD-EPBF is new and unused, you can buy IRG4PC50UD-EPBF Infineon Technologies with us at a very low price and quick delivery.
