Manufacturer Part Number: | ISC1210ER2R2K |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Fixed Inductors |
Available Quantity: | 11010 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2µH Shielded Wirewound Inductor 320mA 900 mOhm Max 1210 (3225 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISC1210ER2R2K Datasheet |
Internal Part Number | 898-ISC1210ER2R2K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
EDA / CAD Models | Download from Accelerated Designs | |

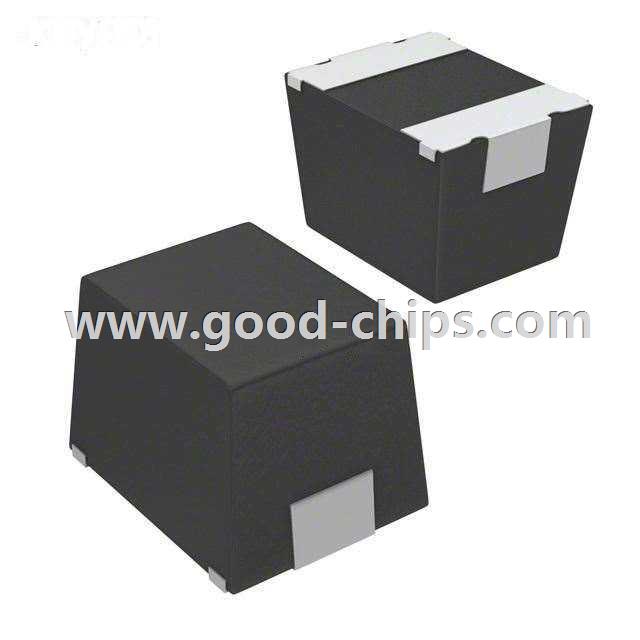

Online Catalog | ISC-1210 Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Vishay Dale | |
Series | ISC-1210 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Powdered Iron | |
Inductance | 2.2µH | |
Tolerance | ±10% | |
Current Rating | 320mA | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 900 mOhm Max | |
Q @ Freq | 30 @ 7.96MHz | |
Frequency - Self Resonant | 65MHz | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 7.96MHz | |
Mounting Type | Surface Mount | |
Package / Case | 1210 (3225 Metric) | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.49mm) | |
Height - Seated (Max) | 0.095" (2.41mm) | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISC1210ER2R2K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISC1210ER2R2K is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of ISC1210ER2R2K is new and unused, you can buy ISC1210ER2R2K Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISC1210ER2R2K.
