Manufacturer Part Number: | ISL28617VY10EV1Z |
---|---|
Manufacturer: | Intersil |
Product Category: | Evaluation Boards - Op Amps |
Available Quantity: | 9013 Pieces |
Unit Price: | Quote by Email |

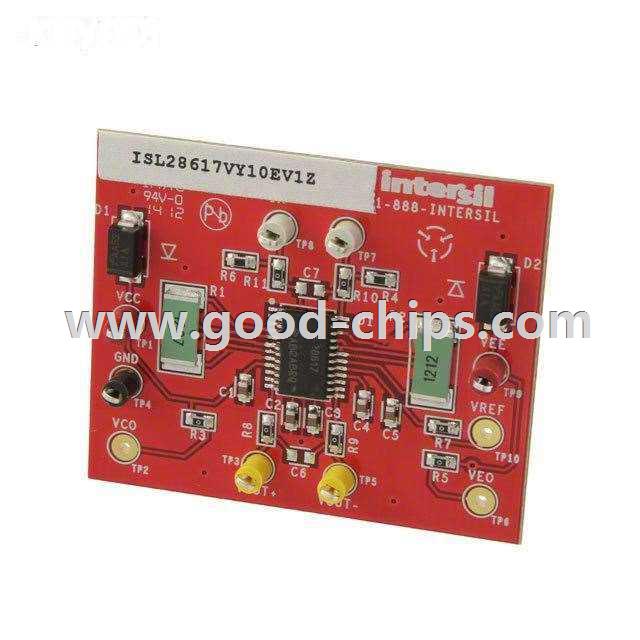

Description: | ISL28617 1 - Single Channels per IC Instrumentation Amplifier Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ISL28617VY10EV1Z Datasheet |
Internal Part Number | 898-ISL28617VY10EV1Z | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
PCN Obsolescence/ EOL | Multiple Devices 03/Aug/2015 | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Op Amps | |
Manufacturer | Intersil | |
Series | - | |
Part Status | Obsolete | |
Channels per IC | 1 - Single | |
Amplifier Type | Instrumentation | |
Output Type | Differential | |
Slew Rate | 4 V/µs | |
-3db Bandwidth | 5.5MHz | |
Current - Output / Channel | 45mA | |
Operating Temperature | -40°C ~ 125°C | |
Current - Supply (Main IC) | 2.05mA | |
Voltage - Supply, Single/Dual (±) | 8 V ~ 40 V, ±4 V ~ 20 V | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | ISL28617 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ISL28617VY10EV1Z | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ISL28617VY10EV1Z is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL28617VY10EV1Z is new and unused, you can buy ISL28617VY10EV1Z Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL28617VY10EV1Z.
