| Manufacturer Part Number: | ISL6564ACRZ-T |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 40-QFN (6x6) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL6564ACRZ-T Datasheet |
| Internal Part Number | 898-ISL6564ACRZ-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Output Type | PWM Signal | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 4 | |
| Output Phases | 4 | |
| Voltage - Supply (Vcc/Vdd) | 4.75 V ~ 5.25 V | |
| Frequency - Switching | 80kHz ~ 1.5MHz | |
| Duty Cycle (Max) | 66.7% | |
| Synchronous Rectifier | - | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Enable, Frequency Control, Power Good | |
| Operating Temperature | 0°C ~ 70°C (TA) | |

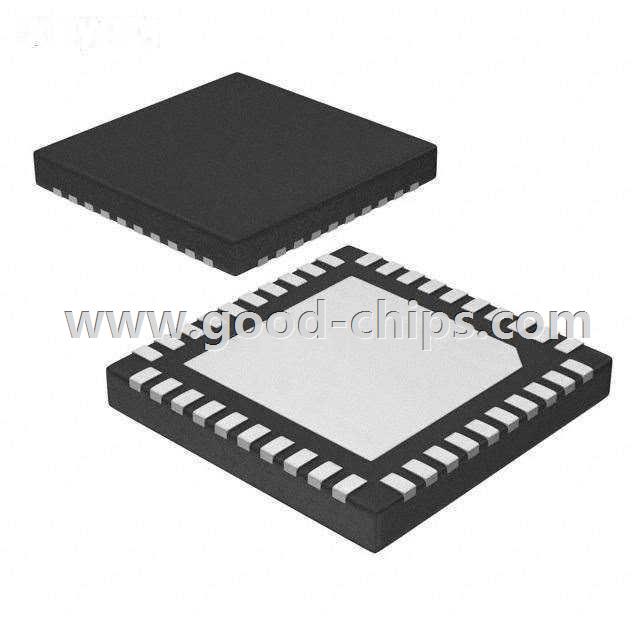

| Package / Case | 40-VFQFN Exposed Pad | |
| Supplier Device Package | 40-QFN (6x6) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL6564ACRZ-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL6564ACRZ-T is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL6564ACRZ-T is new and unused, you can buy ISL6564ACRZ-T Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL6564ACRZ-T.
