| Manufacturer Part Number: | ISL84684IIZ-T |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Circuit IC Switch 2:1 140 mOhm (Typ) 10-WLCSP (2.0x1.5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISL84684IIZ-T Datasheet |
| Internal Part Number | 898-ISL84684IIZ-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Aug/2012 | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
| Manufacturer | Intersil | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Switch Circuit | SPDT | |
| Multiplexer/Demultiplexer Circuit | 2:1 | |
| Number of Circuits | 2 | |
| On-State Resistance (Max) | 140 mOhm (Typ) | |
| Channel-to-Channel Matching (ΔRon) | 50 mOhm | |
| Voltage - Supply, Single (V+) | 1.8 V ~ 4.5 V | |
| Voltage - Supply, Dual (V±) | - | |
| Switch Time (Ton, Toff) (Max) | 40ns, 35ns | |
| -3db Bandwidth | - | |
| Charge Injection | 260pC | |
| Channel Capacitance (CS(off), CD(off)) | 140pF | |
| Current - Leakage (IS(off)) (Max) | 900nA (Typ) | |
| Crosstalk | -105dB @ 100kHz | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

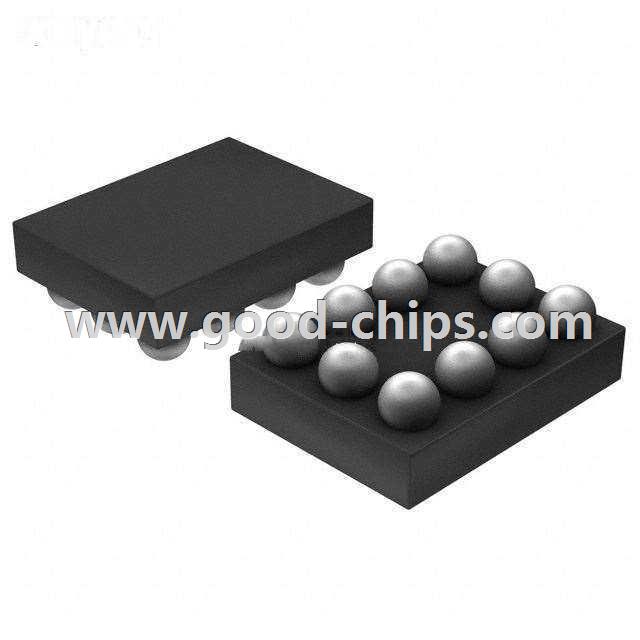

| Package / Case | 10-UFBGA, WLCSP | |
| Supplier Device Package | 10-WLCSP (2.0x1.5) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISL84684IIZ-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISL84684IIZ-T is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of ISL84684IIZ-T is new and unused, you can buy ISL84684IIZ-T Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISL84684IIZ-T.
