| Manufacturer Part Number: | ISO7241MDWRG4 |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Digital Isolators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Digital Isolator 2500Vrms 4 Channel 150Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ISO7241MDWRG4 Datasheet |
| Internal Part Number | 898-ISO7241MDWRG4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Circuit Isolation Techniques | |
| PCN Design/Specification | 16DW Datasheet Update 17/Sep/2013 | |
| Manufacturer Product Page | ISO7241MDWRG4 Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Isolators | |
| Family | Digital Isolators | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Technology | Capacitive Coupling | |
| Type | General Purpose | |
| Isolated Power | No | |
| Number of Channels | 4 | |
| Inputs - Side 1/Side 2 | 3/1 | |
| Channel Type | Unidirectional | |
| Voltage - Isolation | 2500Vrms | |
| Common Mode Transient Immunity (Min) | 25kV/µs | |
| Data Rate | 150Mbps | |
| Propagation Delay tpLH / tpHL (Max) | 23ns, 23ns | |
| Pulse Width Distortion (Max) | 2ns | |
| Rise / Fall Time (Typ) | 2ns, 2ns | |
| Voltage - Supply | 3.15 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 125°C | |

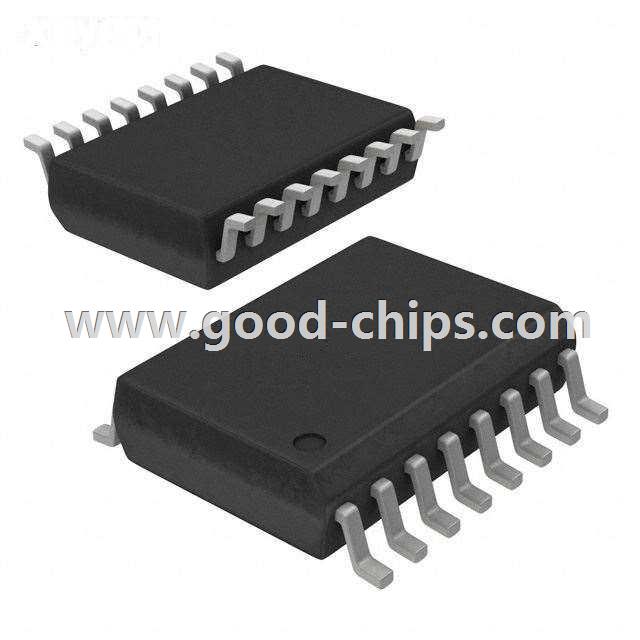

| Package / Case | 16-SOIC (0.295", 7.50mm Width) | |
| Supplier Device Package | 16-SOIC | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ISO7241MDWRG4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ISO7241MDWRG4 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of ISO7241MDWRG4 is new and unused, you can buy ISO7241MDWRG4 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ISO7241MDWRG4.
