| Manufacturer Part Number: | IXGM40N60A |
|---|---|
| Manufacturer: | IXYS |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module Single 600V 75A 250W Chassis Mount TO-204 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | IXGM40N60A Datasheet |
| Internal Part Number | 898-IXGM40N60A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | IGBT’s 600V Legacy 08/May/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | IXYS | |
| Series | - | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 75A | |
| Power - Max | 250W | |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 40A | |
| Current - Collector Cutoff (Max) | 200µA | |
| Input Capacitance (Cies) @ Vce | 4.5nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |

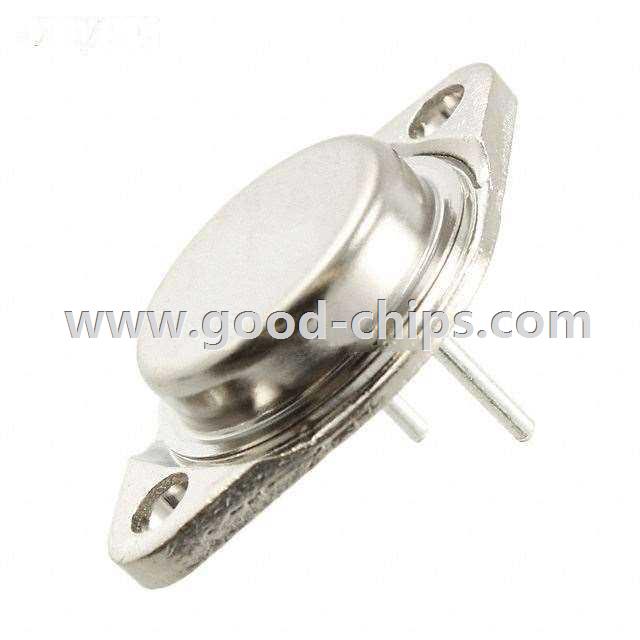

| Package / Case | TO-204AA, TO-3 | |
| Supplier Device Package | TO-204 | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | IXGM40N60A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
IXGM40N60A is in stock for immediate shipping now. We are the distributor of IXYS all series components. The condition of IXGM40N60A is new and unused, you can buy IXGM40N60A IXYS with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for IXGM40N60A.
