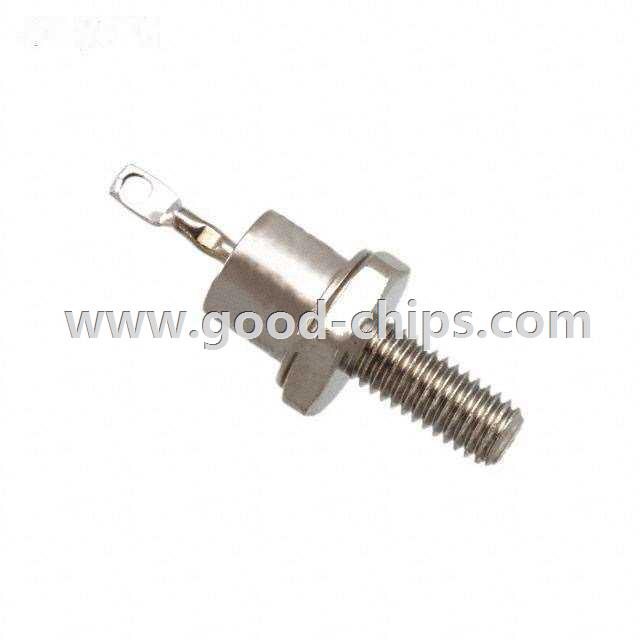

| Manufacturer Part Number: | JANTX1N2971RB |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Diodes - Zener - Single |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | Zener Diode 7.5V 10W ±5% Stud Mount DO-213AA (DO-4) |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX1N2971RB Datasheet |
| Internal Part Number | 898-JANTX1N2971RB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Zener - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Quote Required | |
| Voltage - Zener (Nom) (Vz) | 7.5V | |
| Tolerance | ±5% | |
| Power - Max | 10W | |
| Impedance (Max) (Zzt) | 1.3 Ohm | |
| Current - Reverse Leakage @ Vr | 100µA @ 5.7V | |
| Voltage - Forward (Vf) (Max) @ If | 1.5V @ 2A | |
| Operating Temperature | -65°C ~ 175°C | |
| Mounting Type | Stud Mount | |
| Package / Case | DO-203AA, DO-4, Stud | |
| Supplier Device Package | DO-213AA (DO-4) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX1N2971RB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX1N2971RB is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX1N2971RB is new and unused, you can buy JANTX1N2971RB Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX1N2971RB.
