| Manufacturer Part Number: | JANTX2N3739 |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - Bipolar (BJT) - Single |
| Available Quantity: | 9716 Pieces |
| Unit Price: | Quote by Email |

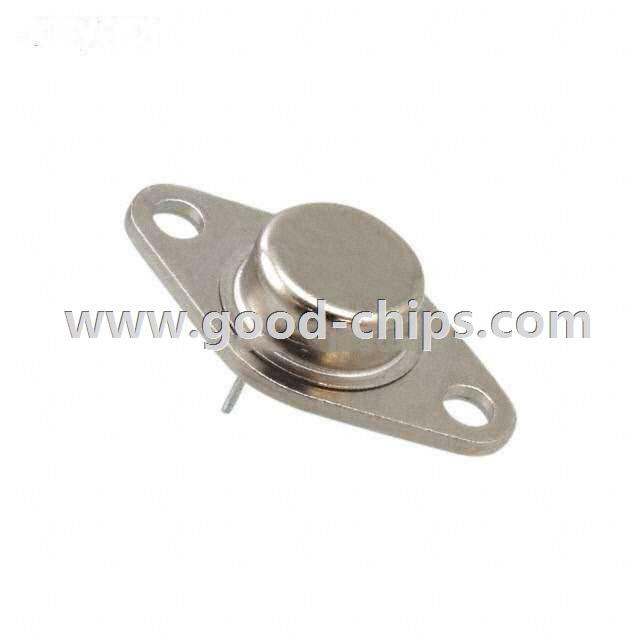

| Description: | TRANS NPN 300V 1A TO-66 |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JANTX2N3739 Datasheet |
| Internal Part Number | 898-JANTX2N3739 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | High-Reliability Semiconductors | |
| Online Catalog | NPN Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - Single | |
| Manufacturer | Microsemi IRE Division | |
| Series | Military, MIL-PRF-19500/402 | |
| Packaging | - | |
| Part Status | Quote Required | |
| Transistor Type | NPN | |
| Current - Collector (Ic) (Max) | 1A | |
| Voltage - Collector Emitter Breakdown (Max) | 300V | |
| Vce Saturation (Max) @ Ib, Ic | 2.5V @ 25mA, 250mA | |
| Current - Collector Cutoff (Max) | 100µA (ICBO) | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 25 @ 250mA, 10V | |
| Power - Max | 20W | |
| Frequency - Transition | - | |
| Mounting Type | - | |
| Package / Case | - | |
| Supplier Device Package | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JANTX2N3739 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JANTX2N3739 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of JANTX2N3739 is new and unused, you can buy JANTX2N3739 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JANTX2N3739.
