| Manufacturer Part Number: | JB5DS05MM11N |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors |
| Available Quantity: | 9035 Pieces |
| Unit Price: | Quote by Email |

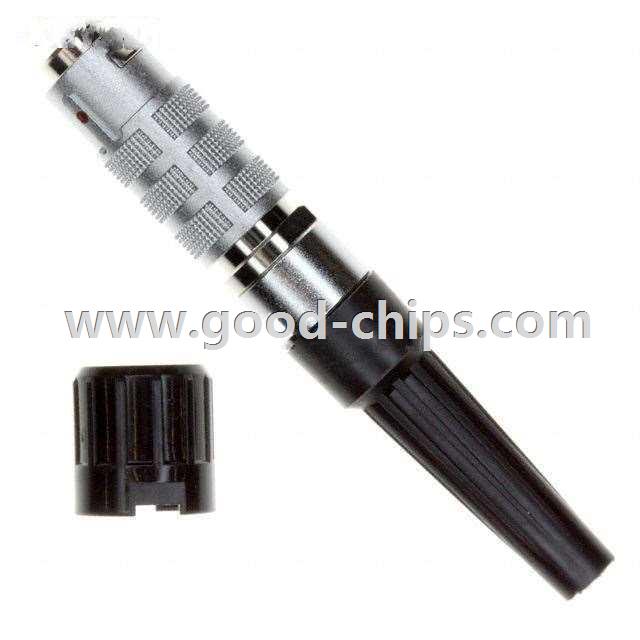

| Description: | 5 Position Circular Connector Plug, Male Pins Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JB5DS05MM11N Datasheet |
| Internal Part Number | 898-JB5DS05MM11N | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | JB5 Series Compact Push-Pull Circular Connectors | |
| Online Catalog | JB5 Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | JAE Electronics | |
| Series | JB5 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 5 | |
| Shell Size - Insert | S | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Push-Pull | |
| Orientation | Keyed | |
| Ingress Protection | IP68 - Dust Tight, Waterproof | |
| Shell Material, Finish | Zinc, Nickel Plated | |
| Contact Finish | Gold | |
| Features | Shielded | |
| Contact Finish Thickness | - | |
| Current Rating | 3A | |
| Voltage - Rated | 320VAC | |
| Operating Temperature | -55°C ~ 85°C | |
| Standard Package | 15 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JB5DS05MM11N | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JB5DS05MM11N is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JB5DS05MM11N is new and unused, you can buy JB5DS05MM11N JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JB5DS05MM11N.
