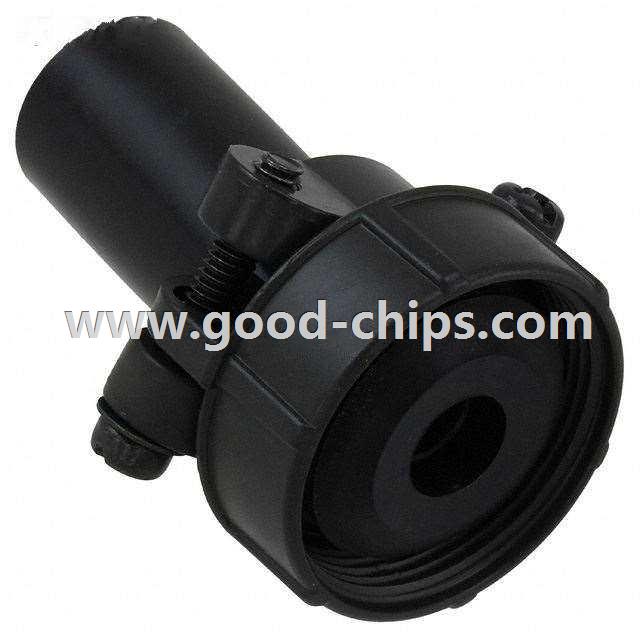

| Manufacturer Part Number: | JL04-2022CK(09)-R |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Circular Connectors - Backshells and Cable Clamps |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Black Connector Cable Clamp 1 3/16-18 UNEF-2B 20, 22 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | JL04-2022CK(09)-R Datasheet |
| Internal Part Number | 898-JL04-2022CK(09)-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors - Backshells and Cable Clamps | |
| Manufacturer | JAE Electronics | |
| Series | JL04V | |
| Part Status | Active | |
| Type | Cable Clamp | |
| Cable Opening | 0.374" (9.50mm) | |
| Diameter - Outside | 1.374" (34.90mm) | |
| Shell Size - Insert | 20, 22 | |
| Thread Size | 1 3/16-18 UNEF-2B | |
| Cable Exit | 180° | |
| Material | Aluminum Alloy | |
| Plating | Zinc | |
| Shielding | - | |
| Color | Black | |
| Features | Bushing, Clamp Screws, Washers | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Includes | 9 pcs - 3 pc Cable Clamp, 1 Bushing, 2 Screws, 3 Washers | |
| Material Flammability Rating | - | |
| For Use With/Related Products | JL04V Series Connectors | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | JL04-2022CK(09)-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
JL04-2022CK(09)-R is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of JL04-2022CK(09)-R is new and unused, you can buy JL04-2022CK(09)-R JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for JL04-2022CK(09)-R.
