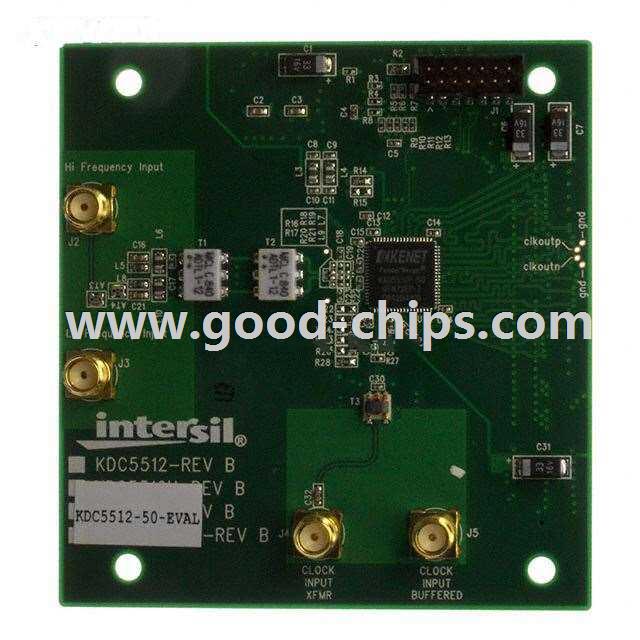

| Manufacturer Part Number: | KDC5512-50EVAL |
|---|---|
| Manufacturer: | Intersil |
| Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | KAD5512P-50, KMB001 Motherboard FemtoCharge™ 12 Bit 500M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KDC5512-50EVAL Datasheet |
| Internal Part Number | 898-KDC5512-50EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
| Manufacturer | Intersil | |
| Series | FemtoCharge™ | |
| Part Status | Obsolete | |
| Number of A/D Converters | 1 | |
| Number of Bits | 12 | |
| Sampling Rate (Per Second) | 500M | |
| Data Interface | Parallel | |
| Input Range | 1.47 Vpp | |
| Power (Typ) @ Conditions | 432mW @ 500MSPS | |
| Utilized IC / Part | KAD5512P-50, KMB001 Motherboard | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KDC5512-50EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KDC5512-50EVAL is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of KDC5512-50EVAL is new and unused, you can buy KDC5512-50EVAL Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KDC5512-50EVAL.
