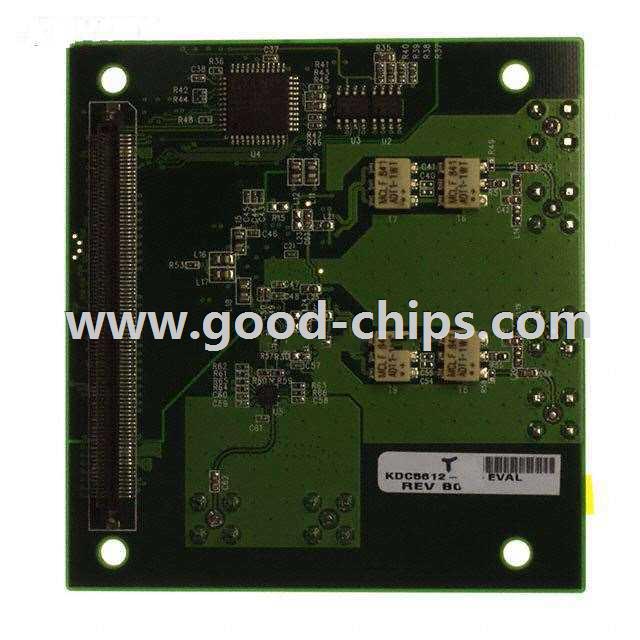

Manufacturer Part Number: | KDC5612EVAL |
---|---|
Manufacturer: | Intersil |
Product Category: | Evaluation Boards - Analog to Digital Converters (ADCs) |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | KAD5612P-25, KMB001 Motherboard FemtoCharge™ 12 Bit 250M Samples per Second Analog to Digital Converter (ADC) Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | KDC5612EVAL Datasheet |
Internal Part Number | 898-KDC5612EVAL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector | |
Online Catalog | KDC Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Analog to Digital Converters (ADCs) | |
Manufacturer | Intersil | |
Series | FemtoCharge™ | |
Part Status | Active | |
Number of A/D Converters | 2 | |
Number of Bits | 12 | |
Sampling Rate (Per Second) | 250M | |
Data Interface | Parallel | |
Input Range | 1.47 Vpp | |
Power (Typ) @ Conditions | 429mW @ 250MSPS | |
Utilized IC / Part | KAD5612P-25, KMB001 Motherboard | |
Supplied Contents | Board | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | KDC5612EVAL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
KDC5612EVAL is in stock for immediate shipping now. We are the distributor of Intersil all series components. The condition of KDC5612EVAL is new and unused, you can buy KDC5612EVAL Intersil with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KDC5612EVAL.
