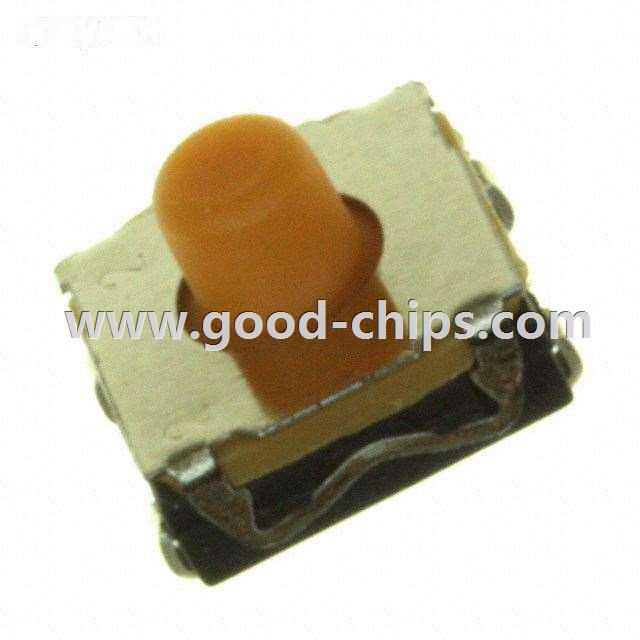

| Manufacturer Part Number: | KSC422J 70SH LFS |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Tactile Switches |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Tactile Switch SPST-NO Top Actuated Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KSC422J 70SH LFS Datasheet |
| Internal Part Number | 898-KSC422J 70SH LFS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Sealed Switch – Part 1 Sealed Switch – Part 2 Sealed Switch – Part 3 Sealed Switch – Part 4 Introduction to Electromechanical Switches Industrial Switches for Safety and Security | |
| RoHS Information | RoHS Cert of Compliance | |
| Featured Product | Industrial Switches – C&K Components | DigiKey | |
| PCN Design/Specification | KSC Series Marking 19/Sep/2014 | |
| Online Catalog | KSC Series | |
| Category | Switches | |
| Family | Tactile Switches | |
| Manufacturer | C&K Components | |
| Series | KSC | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Contact Rating @ Voltage | 0.05A @ 32VDC | |
| Actuator Type | Standard | |
| Mounting Type | Surface Mount | |
| Actuator Height off PCB, from Pins | 5.20mm | |
| Actuator Orientation | Top Actuated | |
| Termination Style | J Lead | |
| Outline | 6.20mm x 6.20mm | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Illumination Type, Color | - | |
| Operating Force | 170gf | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | - | |
| Actuator Material | - | |
| Switch Travel | 0.50mm | |
| Mechanical Life | 1,000,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KSC422J 70SH LFS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KSC422J 70SH LFS is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of KSC422J 70SH LFS is new and unused, you can buy KSC422J 70SH LFS C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KSC422J 70SH LFS.
