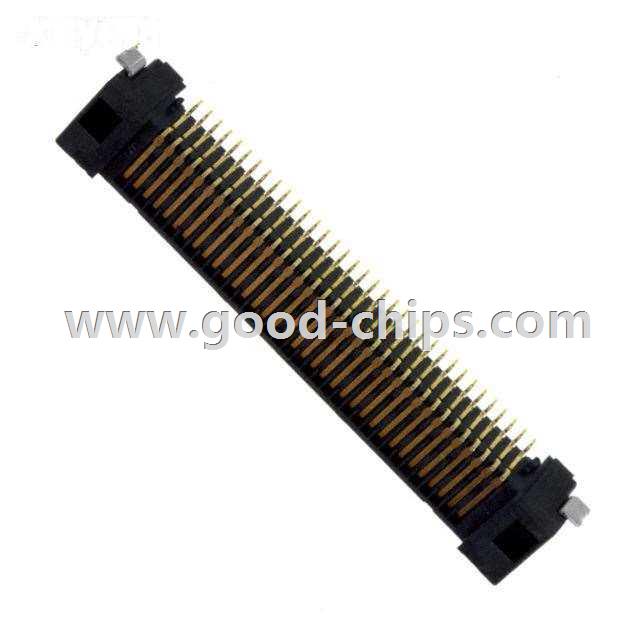

| Manufacturer Part Number: | KX15-70KLDLE |
|---|---|
| Manufacturer: | JAE Electronics |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 70 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | KX15-70KLDLE Datasheet |
| Internal Part Number | 898-KX15-70KLDLE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | JAE Electronics | |
| Series | KX15 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 70 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | - | |
| Height Above Board | 0.226" (5.74mm) | |
| Standard Package | 115 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | KX15-70KLDLE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
KX15-70KLDLE is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of KX15-70KLDLE is new and unused, you can buy KX15-70KLDLE JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for KX15-70KLDLE.
