| Manufacturer Part Number: | LB11660RV-MPB-E |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Motor Driver Bipolar Parallel, PWM 16-SSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LB11660RV-MPB-E Datasheet |
| Internal Part Number | 898-LB11660RV-MPB-E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | EOL 05/Feb/2016 | |
| PCN Design/Specification | Material Chg 21/Jan/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Motor Type - Stepper | - | |
| Motor Type - AC, DC | Brushless DC (BLDC) | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | High Side (2) | |
| Interface | Parallel, PWM | |
| Technology | Bipolar | |
| Step Resolution | - | |
| Applications | Fan Motor Driver | |
| Current - Output | 1.5A | |
| Voltage - Supply | 4 V ~ 15 V | |
| Voltage - Load | 3 V ~ 15 V | |
| Operating Temperature | -30°C ~ 95°C (TA) | |
| Mounting Type | Surface Mount | |

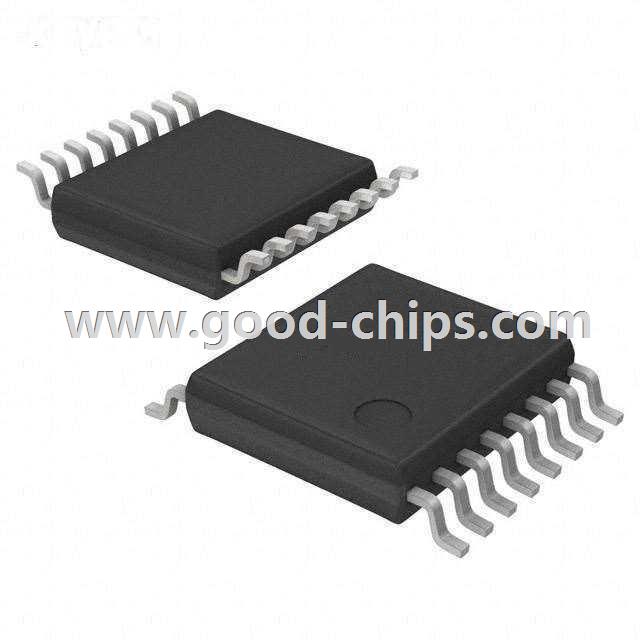

| Package / Case | 16-LSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 16-SSOP | |
| Standard Package | 90 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LB11660RV-MPB-E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LB11660RV-MPB-E is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of LB11660RV-MPB-E is new and unused, you can buy LB11660RV-MPB-E ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LB11660RV-MPB-E.
