| Manufacturer Part Number: | LC4064ZE-5MN64C |
|---|---|
| Manufacturer: | Lattice Semiconductor Corporation |
| Product Category: | Embedded - CPLDs (Complex Programmable Logic Devices) |
| Available Quantity: | 9175 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CPLD 64MC 5.8NS 64CSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LC4064ZE-5MN64C Datasheet |
| Internal Part Number | 898-LC4064ZE-5MN64C | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices Cu Wire 01/Jul/2013 | |
| PCN Assembly/Origin | Alternate Qualified Test Site 30/Sep/2013 Alternate Assembly Revision B 17/Nov/2014 Alternate Assembly/Test Site 06/Oct/2014 Alternate Assembly Revision B 17/Nov/2014 Alternate Assembly/Test Site 14/Apr/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | ispMACH® 4000ZE | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - CPLDs (Complex Programmable Logic Devices) | |
| Manufacturer | Lattice Semiconductor Corporation | |
| Series | ispMACH® 4000ZE | |
| Packaging | Tray | |
| Part Status | Active | |
| Programmable Type | In System Programmable | |
| Delay Time tpd(1) Max | 5.8ns | |
| Voltage Supply - Internal | 1.7 V ~ 1.9 V | |
| Number of Logic Elements/Blocks | 4 | |
| Number of Macrocells | 64 | |
| Number of Gates | - | |
| Number of I/O | 48 | |
| Operating Temperature | 0°C ~ 90°C (TJ) | |
| Mounting Type | Surface Mount | |

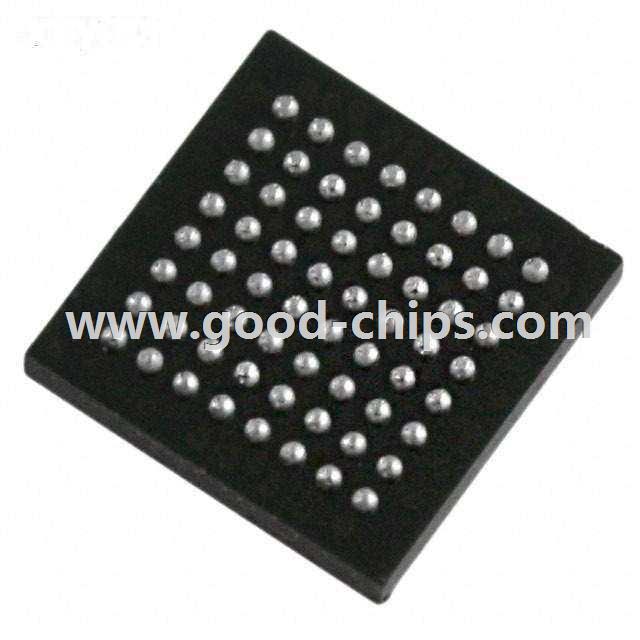

| Package / Case | 64-TFBGA, CSPBGA | |
| Supplier Device Package | 64-CSPBGA (5x5) | |
| Standard Package | 490 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LC4064ZE-5MN64C | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LC4064ZE-5MN64C is in stock for immediate shipping now. We are the distributor of Lattice Semiconductor Corporation all series components. The condition of LC4064ZE-5MN64C is new and unused, you can buy LC4064ZE-5MN64C Lattice Semiconductor Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LC4064ZE-5MN64C.
