| Manufacturer Part Number: | LCA10150T09SC |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9483 Pieces |
| Unit Price: | Quote by Email |

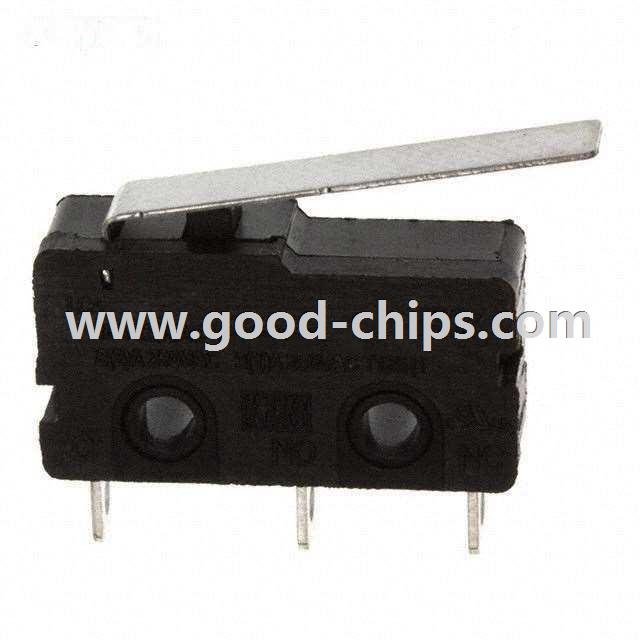

| Description: | SWITCH SNAP ACTION SPDT 10A 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LCA10150T09SC Datasheet |
| Internal Part Number | 898-LCA10150T09SC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| PCN Part Number | LCA and LCS Series 22/Oct/2010 | |
| Online Catalog | LC, LCA, and LCS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | C&K Components | |
| Series | LCA | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 10A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Straight | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 33gf | |
| Release Force | 2gf | |
| Pretravel | 0.170" (4.3mm) | |
| Differential Travel | 0.070" (1.8mm) | |
| Overtravel | 0.029" (0.74mm) | |
| Operating Position | 0.362" (9.2mm) | |
| Mechanical Life | 300,000 Cycles | |
| Electrical Life | 10,000 Cycles | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LCA10150T09SC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LCA10150T09SC is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of LCA10150T09SC is new and unused, you can buy LCA10150T09SC C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LCA10150T09SC.
