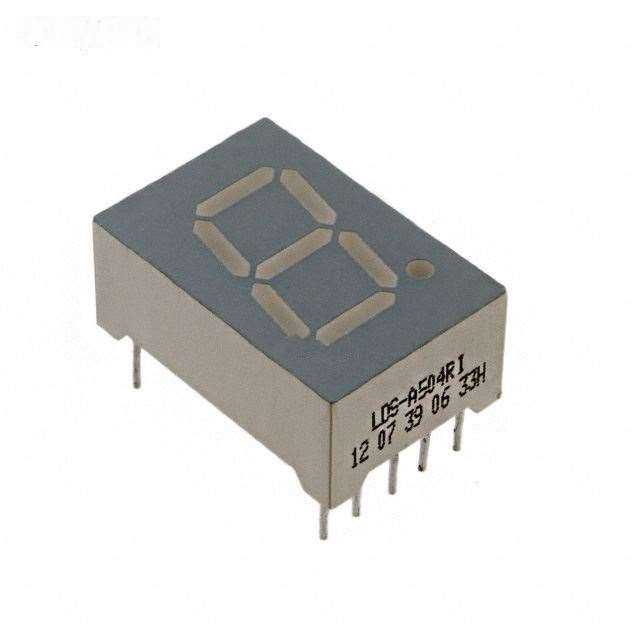

| Manufacturer Part Number: | LDS-A504RI |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Display Modules - LED Character and Numeric |
| Available Quantity: | 12464 Pieces |
| Unit Price: | Quote by Email |
| Description: | Character LED Display Module Red 7-Segment 1 Character Common Anode 2V 10mA 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) 10-DIP (0.600", 15.24mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LDS-A504RI Datasheet |
| Internal Part Number | 898-LDS-A504RI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs | |
| RoHS Information | RoHS Cert of Compliance | |
| Online Catalog | 0.50in 1-Digit 7-Segment Display | |
| Category | Optoelectronics | |
| Family | Display Modules - LED Character and Numeric | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Number of Characters | 1 | |
| Size / Dimension | 0.748" H x 0.500" W x 0.315" D (19.00mm x 12.70mm x 8.00mm) | |
| Digit/Alpha Size | 0.50" (12.70mm) | |
| Display Type | 7-Segment | |
| Common Pin | Common Anode | |
| Color | Red | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Current - Test | 10mA | |
| Millicandela Rating | 5mcd | |
| Wavelength - Peak | 635nm | |
| Power Dissipation (Max) | 105mW | |
| Package / Case | 10-DIP (0.600", 15.24mm) | |
| Standard Package | 40 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LDS-A504RI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LDS-A504RI is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of LDS-A504RI is new and unused, you can buy LDS-A504RI Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LDS-A504RI.
