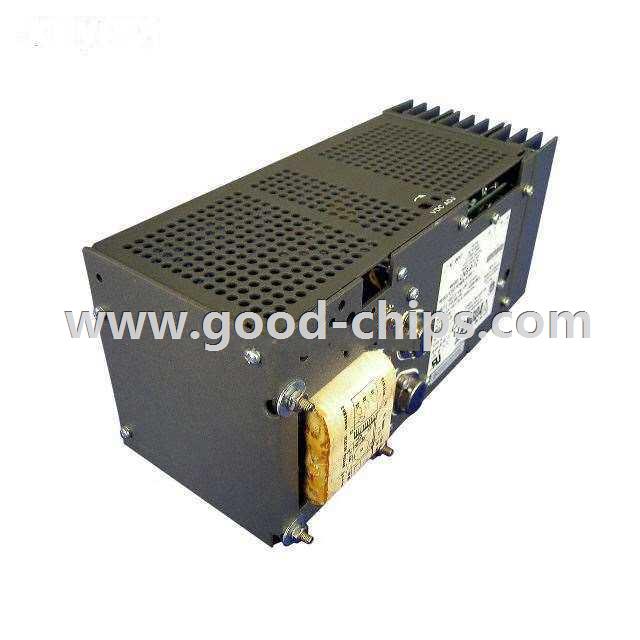

| Manufacturer Part Number: | LFS-47-24 |
|---|---|
| Manufacturer: | TDK-Lambda Americas Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 792W |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS compliant by exemption |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LFS-47-24 Datasheet |
| Internal Part Number | 898-LFS-47-24 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | TDK-Lambda Americas Inc. | |
| Series | LFS | |
| Part Status | Obsolete | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 95 ~ 132 VAC, 187 ~ 265 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 33A | |
| Power (Watts) | 792W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 75% | |
| Operating Temperature | 0°C ~ 60°C | |
| Features | Adjustable Output, DC Input Capable, Load Sharing, Remote On/Off, Remote Sense | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 8.88" L x 5.00" W x 4.88" H (225.6mm x 127.0mm x 124.0mm) | |
| Minimum Load Required | - | |
| Approvals | CE | |
| Power (Watts) - Max | 792W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LFS-47-24 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LFS-47-24 is in stock for immediate shipping now. We are the distributor of TDK-Lambda Americas Inc. all series components. The condition of LFS-47-24 is new and unused, you can buy LFS-47-24 TDK-Lambda Americas Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LFS-47-24.
