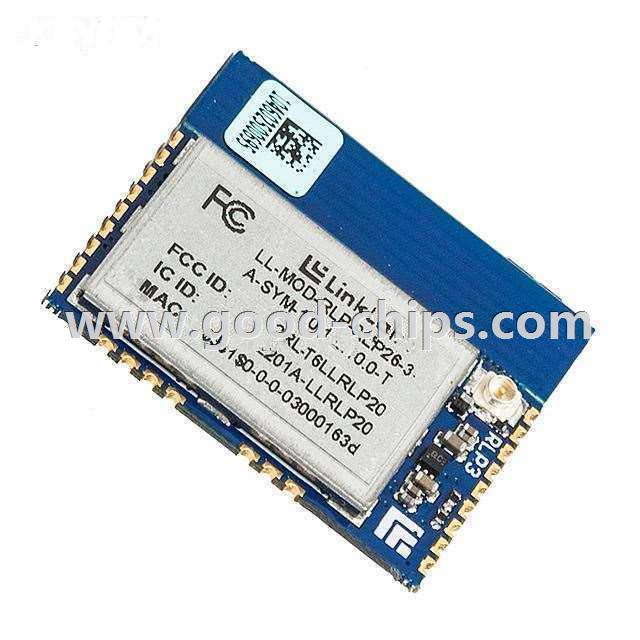

| Manufacturer Part Number: | LL-RLP-20-915-SYM-A |
|---|---|
| Manufacturer: | Link Labs Inc. |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD ISM<1GHZ TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LL-RLP-20-915-SYM-A Datasheet |
| Internal Part Number | 898-LL-RLP-20-915-SYM-A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | LL-RLP-20 and LL-RXR-27 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Link Labs Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| RF Family/Standard | General ISM < 1GHz | |
| Protocol | LoRaWAN 1.0 | |
| Modulation | DSSS, FSK | |
| Frequency | 137MHz ~ 1.02GHz | |
| Data Rate | - | |
| Power - Output | 18dBm | |
| Sensitivity | -132dBm | |
| Serial Interfaces | I²C, SPI, UART | |
| Antenna Type | Integrated, Trace | |
| Memory Size | 256kB Flash, 32kB RAM | |
| Voltage - Supply | - | |
| Current - Receiving | - | |
| Current - Transmitting | - | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 25-SMD Module | |
| Standard Package | 250 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LL-RLP-20-915-SYM-A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LL-RLP-20-915-SYM-A is in stock for immediate shipping now. We are the distributor of Link Labs Inc. all series components. The condition of LL-RLP-20-915-SYM-A is new and unused, you can buy LL-RLP-20-915-SYM-A Link Labs Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LL-RLP-20-915-SYM-A.
