| Manufacturer Part Number: | LM3642TLX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) I²C Dimming 1.5A (Flash) 9-DSBGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM3642TLX/NOPB Datasheet |
| Internal Part Number | 898-LM3642TLX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting Driver Solutions | |
| Design Resources | Lighting Product Selector | |
| PCN Assembly/Origin | JCAP Assembly/Test Site 09/May/2013 Wafer Process BCB Elimnation 12/Feb/2014 Wafer Process Revision A 14/Jul/2014 | |
| Manufacturer Product Page | LM3642TLX/NOPB Specifications | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.5V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 5V | |
| Current - Output / Channel | 1.5A (Flash) | |
| Frequency | 4MHz | |
| Dimming | I²C | |
| Applications | Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

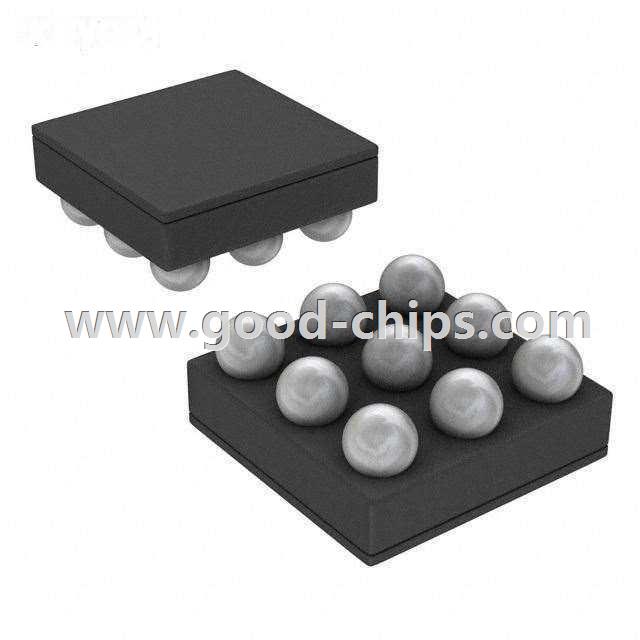

| Package / Case | 9-WFBGA, DSBGA | |
| Supplier Device Package | 9-DSBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM3642TLX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM3642TLX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM3642TLX/NOPB is new and unused, you can buy LM3642TLX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM3642TLX/NOPB.
