| Manufacturer Part Number: | LM4946TMX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Audio |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Amplifier IC 1-Channel (Mono) with Stereo Headphones Class D 25-uSMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LM4946TMX/NOPB Datasheet |
| Internal Part Number | 898-LM4946TMX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Audio | |
| Manufacturer | Texas Instruments | |
| Series | Boomer® | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Type | Class D | |
| Output Type | 1-Channel (Mono) with Stereo Headphones | |
| Max Output Power x Channels @ Load | 1.3W x 1 @ 8 Ohm; 85mW x 2 @ 32 Ohm | |
| Voltage - Supply | 2.7 V ~ 5.5 V | |
| Features | 3D, Depop, I²C, Mute, Shutdown, SPI, Thermal Protection, Volume Control | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Supplier Device Package | 25-uSMD | |

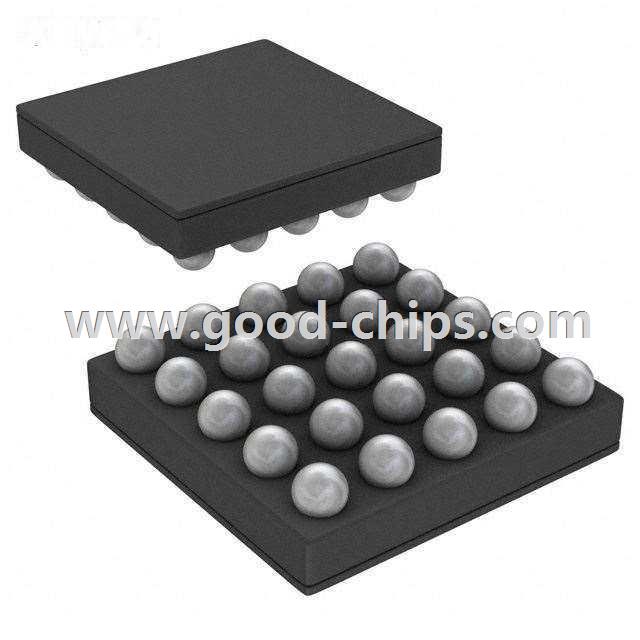

| Package / Case | 25-WFBGA | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LM4946TMX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LM4946TMX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LM4946TMX/NOPB is new and unused, you can buy LM4946TMX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LM4946TMX/NOPB.
