Stocking distributor of Electronic Components
Email: [email protected]
| Manufacturer Part Number: | LMC8101TPX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps |
| Available Quantity: | 17975 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Amplifier 1 Circuit Rail-to-Rail 8-microSMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMC8101TPX/NOPB Datasheet |
| Internal Part Number | 898-LMC8101TPX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Create your power design now with TI’s WEBENCH® Designer | |
| PCN Assembly/Origin | Wafer Process BCB Elimnation 12/Feb/2014 Wafer Process Revision A 14/Jul/2014 | |
| PCN Packaging | Carrier Tape Update 24/Aug/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | General Purpose | |
| Category | Integrated Circuits (ICs) | |
| Family | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Amplifier Type | General Purpose | |
| Number of Circuits | 1 | |
| Output Type | Rail-to-Rail | |
| Slew Rate | 1.2 V/µs | |
| Gain Bandwidth Product | 1.3MHz | |
| -3db Bandwidth | - | |
| Current - Input Bias | 1pA | |
| Voltage - Input Offset | 700µV | |
| Current - Supply | 1.1mA | |
| Current - Output / Channel | 90mA | |
| Voltage - Supply, Single/Dual (±) | 2.7 V ~ 10 V, ±1.35 V ~ 5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

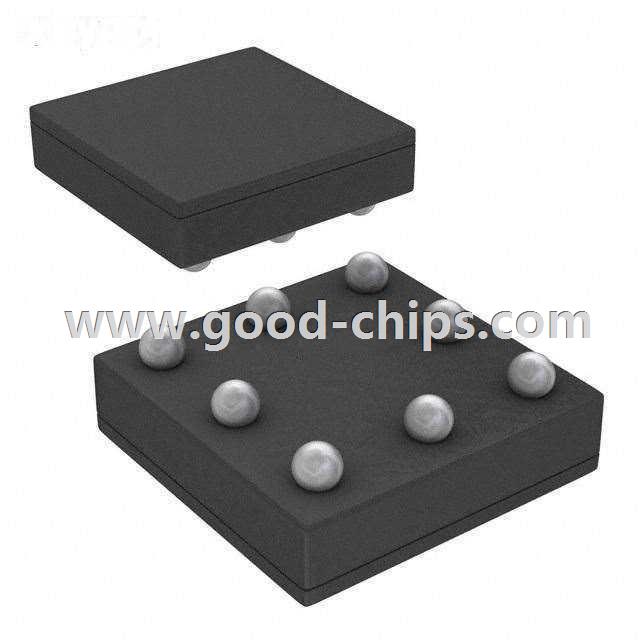

| Package / Case | 8-UFBGA | |
| Supplier Device Package | 8-microSMD | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMC8101TPX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMC8101TPX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LMC8101TPX/NOPB is new and unused, you can buy LMC8101TPX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMC8101TPX/NOPB.
