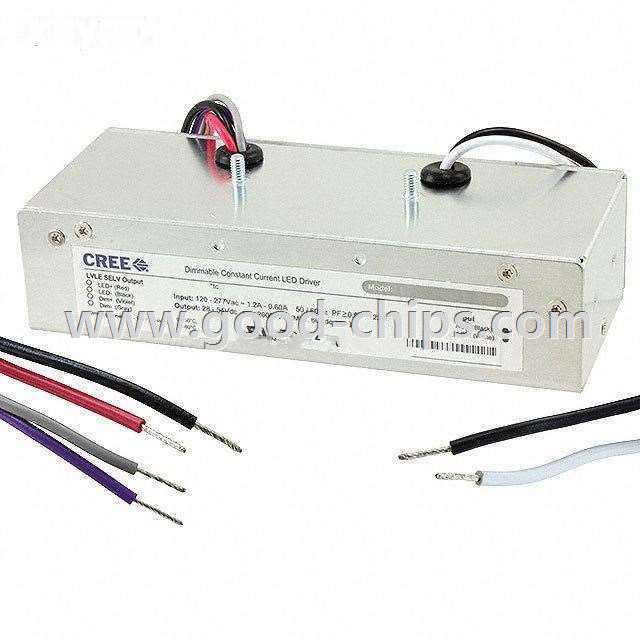

| Manufacturer Part Number: | LMD800-0120-C2A0-7030000 |
|---|---|
| Manufacturer: | Cree Inc. |
| Product Category: | LED Drivers |
| Available Quantity: | 9042 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2A 25 ~ 52 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMD800-0120-C2A0-7030000 Datasheet |
| Internal Part Number | 898-LMD800-0120-C2A0-7030000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | LMD800 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Cree Inc. | |
| Series | LMD800 | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 100VAC | |
| Voltage - Input (Max) | 277VAC | |
| Voltage - Output | 25 ~ 52 V | |
| Current - Output (Max) | 2A | |
| Power (Watts) | 104W | |
| Voltage - Isolation | - | |
| Dimming | Analog | |
| Features | - | |
| Ratings | IP20, NEMA 410 | |
| Operating Temperature | 0°C ~ 80°C | |
| Efficiency | - | |
| Termination Style | Wire Leads | |
| Size / Dimension | 6.30" L x 2.48" W x 1.54" H (160.0mm x 63.0mm x 39.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, cULus | |
| Weight | 0.001 KG | |
| Standard Package | 10 | |
| Application | Email for details | |
| Replacement Part | LMD800-0120-C2A0-7030000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMD800-0120-C2A0-7030000 is in stock for immediate shipping now. We are the distributor of Cree Inc. all series components. The condition of LMD800-0120-C2A0-7030000 is new and unused, you can buy LMD800-0120-C2A0-7030000 Cree Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMD800-0120-C2A0-7030000.
