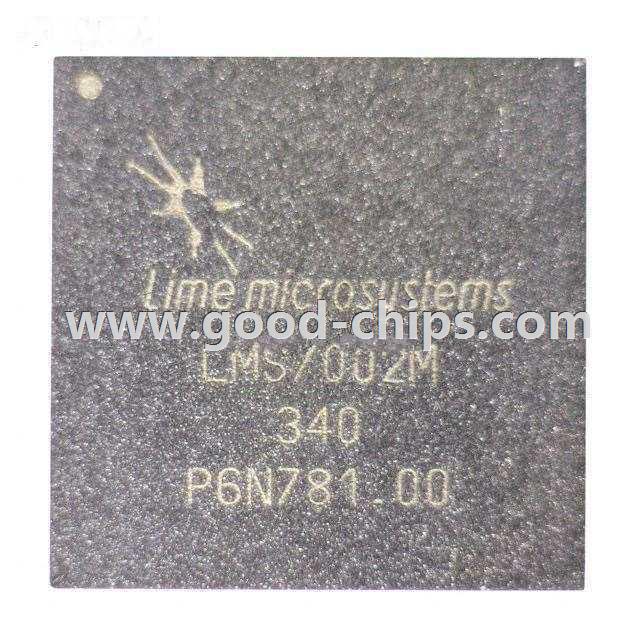

| Manufacturer Part Number: | LMS7002M |
|---|---|
| Manufacturer: | Lime Microsystems Ltd |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU Cellular CDMA, GSM, HSPA, LTE, TD-SCDMA, WCDMA 100kHz ~ 3.8GHz 261-SMD Module |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 5 (48 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMS7002M Datasheet |
| Internal Part Number | 898-LMS7002M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | LMS7002M RF Transceiver and EVB7 Communication Module STREAM Development Board and STREAM-UCWP | |
| Online Catalog | LMS7002M | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Lime Microsystems Ltd | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | Cellular | |
| Protocol | CDMA, GSM, HSPA, LTE, TD-SCDMA, WCDMA | |
| Modulation | - | |
| Frequency | 100kHz ~ 3.8GHz | |
| Data Rate (Max) | - | |
| Power - Output | 0dBm | |
| Sensitivity | - | |
| Memory Size | 10kB SRAM | |
| Serial Interfaces | SPI | |
| GPIO | - | |
| Voltage - Supply | 1.1 V ~ 1.89 V | |
| Current - Receiving | 420mA | |
| Current - Transmitting | 350mA | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | 261-SMD Module | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMS7002M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMS7002M is in stock for immediate shipping now. We are the distributor of Lime Microsystems Ltd all series components. The condition of LMS7002M is new and unused, you can buy LMS7002M Lime Microsystems Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMS7002M.
