| Manufacturer Part Number: | LMX9838SBX/NOPB |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | RF Transceiver ICs |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC RF TxRx + MCU Bluetooth Bluetooth v2.0 2.4GHz 70-LGA |
| Lead Free Status / RoHS Status: | Lead free / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 4 (72 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMX9838SBX/NOPB Datasheet |
| Internal Part Number | 898-LMX9838SBX/NOPB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | The LMX9838 Bluetooth® Module | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| PCN Design/Specification | LMX9838 Datasheet Update 23/Jan/2015 | |
| Manufacturer Product Page | LMX9838SBX/NOPB Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | LMX9838 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver ICs | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | TxRx + MCU | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v2.0 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate (Max) | 704kbps | |
| Power - Output | 0dBm | |
| Sensitivity | -80dBm | |
| Memory Size | 16kB RAM | |
| Serial Interfaces | UART | |
| GPIO | 3 | |
| Voltage - Supply | 2.5 V ~ 3.6 V | |
| Current - Receiving | 65mA (Max) | |
| Current - Transmitting | 65mA (Max) | |
| Operating Temperature | -40°C ~ 85°C | |

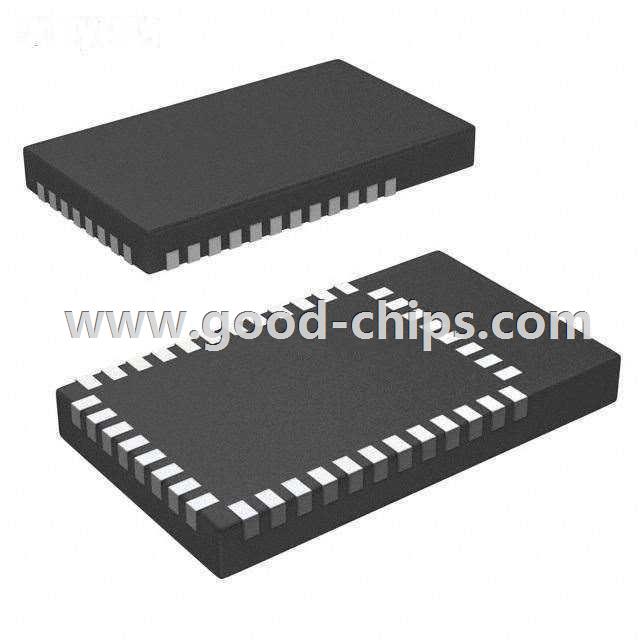

| Package / Case | 70-LGA | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMX9838SBX/NOPB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMX9838SBX/NOPB is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of LMX9838SBX/NOPB is new and unused, you can buy LMX9838SBX/NOPB Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMX9838SBX/NOPB.
