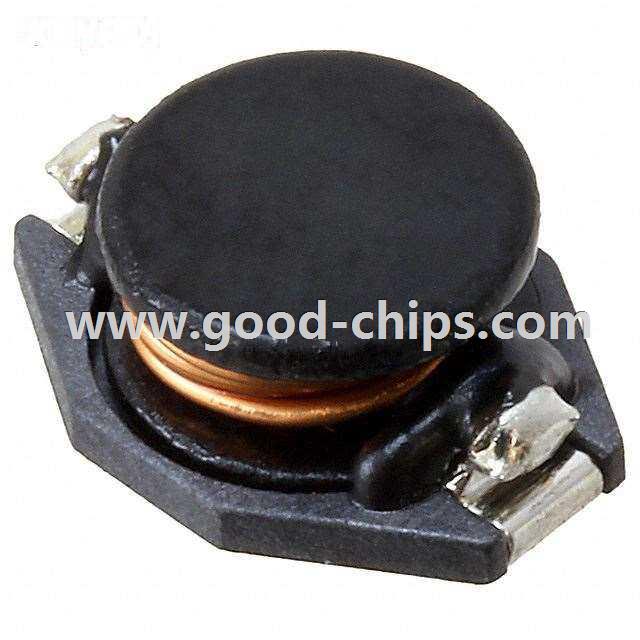

| Manufacturer Part Number: | LMXN1310M4R7CTAS |
|---|---|
| Manufacturer: | AVX Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9934 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4.7µH Unshielded Wirewound Inductor 36 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LMXN1310M4R7CTAS Datasheet |
| Internal Part Number | 898-LMXN1310M4R7CTAS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | LMXN Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | AVX Corporation | |
| Series | LMXN | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 4.7µH | |
| Tolerance | ±20% | |
| Current Rating | - | |
| Current - Saturation | 4.2A | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 36 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.560" L x 0.390" W (13.20mm x 9.90mm) | |
| Height - Seated (Max) | 0.250" (6.35mm) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LMXN1310M4R7CTAS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LMXN1310M4R7CTAS is in stock for immediate shipping now. We are the distributor of AVX Corporation all series components. The condition of LMXN1310M4R7CTAS is new and unused, you can buy LMXN1310M4R7CTAS AVX Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LMXN1310M4R7CTAS.
