| Manufacturer Part Number: | LP1S-L5-Z |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9110 Pieces |
| Unit Price: | Quote by Email |

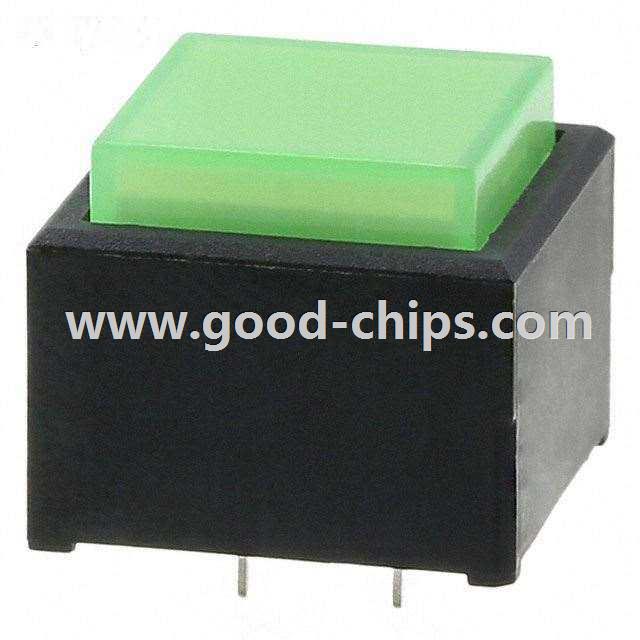

| Description: | LED Panel Indicator Green Clear 2.1V 25mA Square with Flat Top, 12.00mm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LP1S-L5-Z Datasheet |
| Internal Part Number | 898-LP1S-L5-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | LP Series | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Copal Electronics Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Green | |
| Lens Color | Green | |
| Lens Transparency | Clear | |
| Ratings | Vf (Typ), If (Max) | |
| Voltage | 2.1V | |
| Current | 25mA | |
| Panel Cutout Shape | Square | |
| Panel Cutout Dimensions | - | |
| Lens Style/Size | Square with Flat Top, 12.00mm | |
| Millicandela Rating | - | |
| Wavelength - Peak | - | |
| Viewing Angle | - | |
| Termination Style | - | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LP1S-L5-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LP1S-L5-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of LP1S-L5-Z is new and unused, you can buy LP1S-L5-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LP1S-L5-Z.
