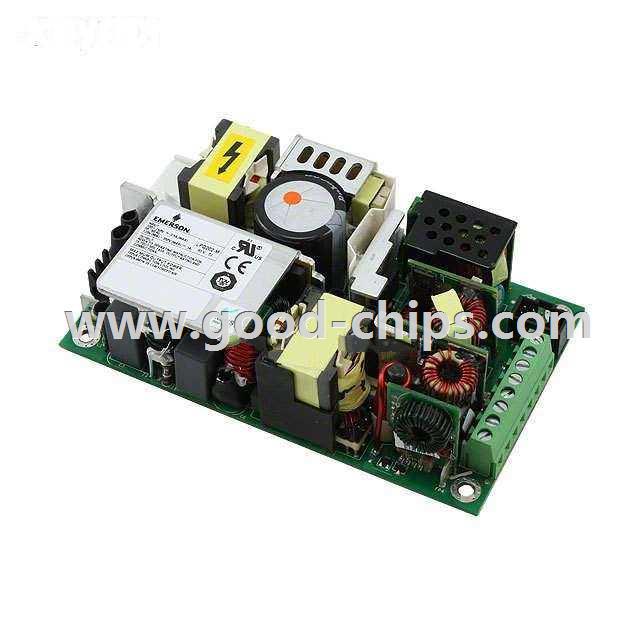

| Manufacturer Part Number: | LPQ202-M |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9067 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V 12V 24V -12V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LPQ202-M Datasheet |
| Internal Part Number | 898-LPQ202-M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | LPQ200-M Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | LPQ200-M | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 4 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | 12V | |
| Voltage - Output 3 | 24V | |
| Voltage - Output 4 | -12V | |
| Current - Output (Max) | 13A, 5A, 1.5A, 1A | |
| Power (Watts) | 100W (200W Forced Air) | |
| Applications | ITE (Commercial), Medical | |
| Voltage - Isolation | - | |
| Efficiency | 84% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, Remote Sense, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 100W (200W Forced Air) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LPQ202-M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LPQ202-M is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LPQ202-M is new and unused, you can buy LPQ202-M Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LPQ202-M.
