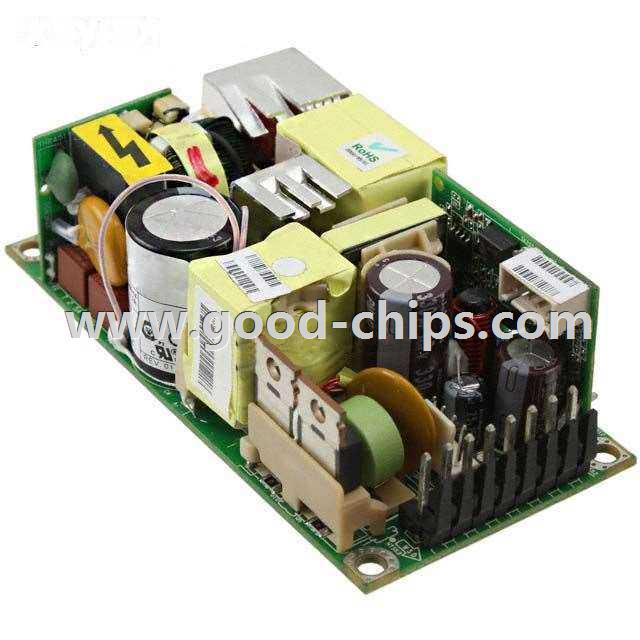

| Manufacturer Part Number: | LPS109-M |
|---|---|
| Manufacturer: | Artesyn Embedded Technologies |
| Product Category: | AC DC Converters |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 54V 80W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LPS109-M Datasheet |
| Internal Part Number | 898-LPS109-M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LPS100 Series AC-DC Power Supply | |
| PCN Packaging | CSA Marking 20/Sep/2013 | |
| Online Catalog | LPS100-M Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Artesyn Embedded Technologies | |
| Series | LPS100-M | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 54V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 1.85A | |
| Power (Watts) | 80W (120W Forced Air) | |
| Applications | ITE (Commercial), Medical | |
| Voltage - Isolation | - | |
| Efficiency | 88% | |
| Operating Temperature | 0°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 4.00" L x 2.00" W x 1.29" H (101.6mm x 50.8mm x 32.8mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 80W (120W Forced Air) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LPS109-M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LPS109-M is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LPS109-M is new and unused, you can buy LPS109-M Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LPS109-M.
