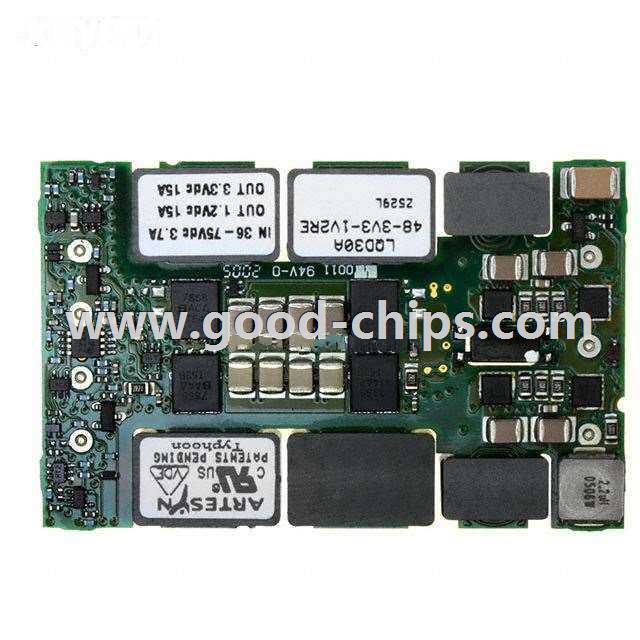

Manufacturer Part Number: | LQD30A48-3V3-1V2RE |
---|---|
Manufacturer: | Artesyn Embedded Technologies |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONV DC/DC 48V 15A 1.2/3.3V OUT |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | LQD30A48-3V3-1V2RE Datasheet |
Internal Part Number | 898-LQD30A48-3V3-1V2RE | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | Artesyn Embedded Technologies | |
Series | LQD | |
Packaging | Tray | |
Part Status | Obsolete | |
Type | Isolated Module | |
Number of Outputs | 2 | |
Voltage - Input (Min) | 36V | |
Voltage - Input (Max) | 75V | |
Voltage - Output 1 | 1.2V | |
Voltage - Output 2 | 3.3V | |
Voltage - Output 3 | - | |
Current - Output (Max) | 15A, 15A | |
Power (Watts) - Manufacture Series | 67W | |
Voltage - Isolation | 2.25kV (2250V) | |
Applications | ITE (Commercial) | |
Features | Remote On/Off, OTP, OVP, SCP, UVLO | |
Mounting Type | Through Hole | |
Package / Case | 7-DIP Module, 1/4 Brick | |
Size / Dimension | 2.30" L x 1.45" W x 0.34" H (58.4mm x 36.8mm x 8.6mm) | |
Operating Temperature | -40°C ~ 85°C | |
Efficiency | 90% | |
Power (Watts) - Max | 67.5W | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | LQD30A48-3V3-1V2RE | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
LQD30A48-3V3-1V2RE is in stock for immediate shipping now. We are the distributor of Artesyn Embedded Technologies all series components. The condition of LQD30A48-3V3-1V2RE is new and unused, you can buy LQD30A48-3V3-1V2RE Artesyn Embedded Technologies with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LQD30A48-3V3-1V2RE.
