| Manufacturer Part Number: | LT8500IUHH#TRPBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | Clock/Timing - Application Specific |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC PWM GENERATOR 56-QFN |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LT8500IUHH#TRPBF Datasheet |
| Internal Part Number | 898-LT8500IUHH#TRPBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | LT8500 Devices 15/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Application Specific | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| PLL | No | |
| Main Purpose | LED Lighting | |
| Input | CMOS, TTL | |
| Output | CMOS, TTL | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 1:48 | |
| Differential - Input:Output | No/No | |
| Frequency - Max | 50MHz | |
| Voltage - Supply | 3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |

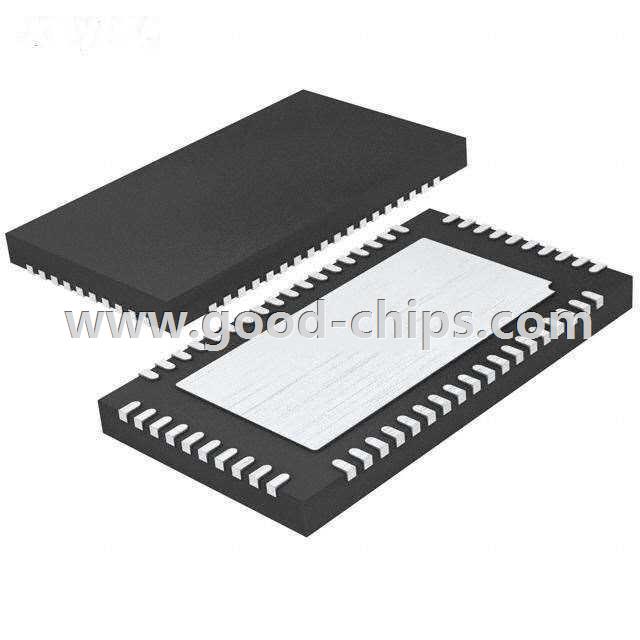

| Package / Case | 56-WFQFN Exposed Pad | |
| Supplier Device Package | 56-QFN (5x9) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LT8500IUHH#TRPBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LT8500IUHH#TRPBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LT8500IUHH#TRPBF is new and unused, you can buy LT8500IUHH#TRPBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LT8500IUHH#TRPBF.
