| Manufacturer Part Number: | LTC3548EKD-1#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Switching Regulator IC Positive Fixed 1.575V, 1.8V 2 Output 700mA, 1.2A 10-UFDFN Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTC3548EKD-1#PBF Datasheet |
| Internal Part Number | 898-LTC3548EKD-1#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Output Type | Fixed | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 2.5V | |
| Voltage - Input (Max) | 5.5V | |
| Voltage - Output (Min/Fixed) | 1.575V, 1.8V | |
| Voltage - Output (Max) | - | |
| Current - Output | 700mA, 1.2A | |
| Frequency - Switching | 2.25MHz | |
| Synchronous Rectifier | Yes | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

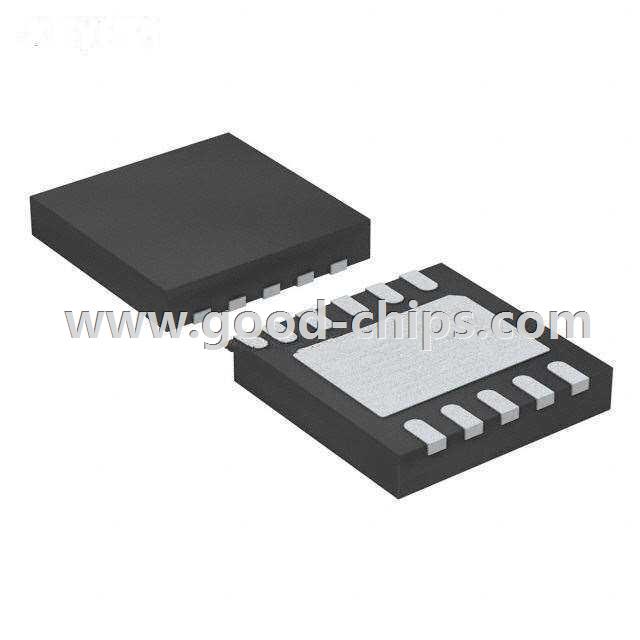

| Package / Case | 10-UFDFN Exposed Pad | |
| Supplier Device Package | 10-UTDFN (3x3) | |
| Standard Package | 121 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTC3548EKD-1#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTC3548EKD-1#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC3548EKD-1#PBF is new and unused, you can buy LTC3548EKD-1#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC3548EKD-1#PBF.
