| Manufacturer Part Number: | LTC3862HUH#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9141 Pieces |
| Unit Price: | Quote by Email |
| Description: | Boost, SEPIC Regulator Positive Output Step-Up, Step-Up/Step-Down DC-DC Controller IC 24-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTC3862HUH#PBF Datasheet |
| Internal Part Number | 898-LTC3862HUH#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Forward | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Up, Step-Up/Step-Down | |
| Output Configuration | Positive | |
| Topology | Boost, SEPIC | |
| Number of Outputs | 2 | |
| Output Phases | 2 | |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 36 V | |
| Frequency - Switching | 75kHz ~ 500kHz | |
| Duty Cycle (Max) | 96% | |
| Synchronous Rectifier | No | |
| Clock Sync | Yes | |
| Serial Interfaces | - | |
| Control Features | Enable, Frequency Control, Phase Control, Soft Start | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |

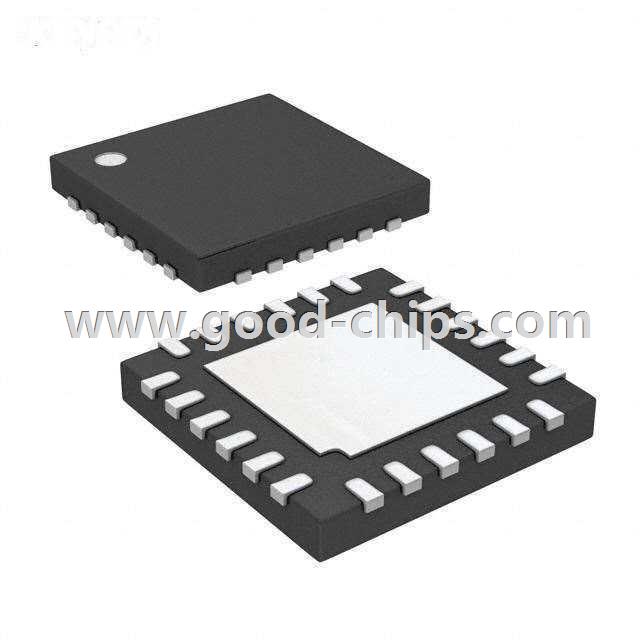

| Package / Case | 24-WQFN Exposed Pad | |
| Supplier Device Package | 24-QFN (5x5) | |
| Standard Package | 73 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTC3862HUH#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTC3862HUH#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC3862HUH#PBF is new and unused, you can buy LTC3862HUH#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC3862HUH#PBF.
