| Manufacturer Part Number: | LTC3866EUF#PBF |
|---|---|
| Manufacturer: | Linear Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Controllers |
| Available Quantity: | 9176 Pieces |
| Unit Price: | Quote by Email |
| Description: | Buck Regulator Positive Output Step-Down DC-DC Controller IC 24-QFN (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | LTC3866EUF#PBF Datasheet |
| Internal Part Number | 898-LTC3866EUF#PBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LTC3866 Current Mode Synchronous Step-Down Controller | |
| Online Catalog | Forward | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Controllers | |
| Manufacturer | Linear Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Output Type | Transistor Driver | |
| Function | Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck | |
| Number of Outputs | 1 | |
| Output Phases | 1 | |
| Voltage - Supply (Vcc/Vdd) | 4.5 V ~ 38 V | |
| Frequency - Switching | 250kHz ~ 770kHz | |
| Duty Cycle (Max) | - | |
| Synchronous Rectifier | Yes | |
| Clock Sync | No | |
| Serial Interfaces | - | |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Soft Start, Tracking | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

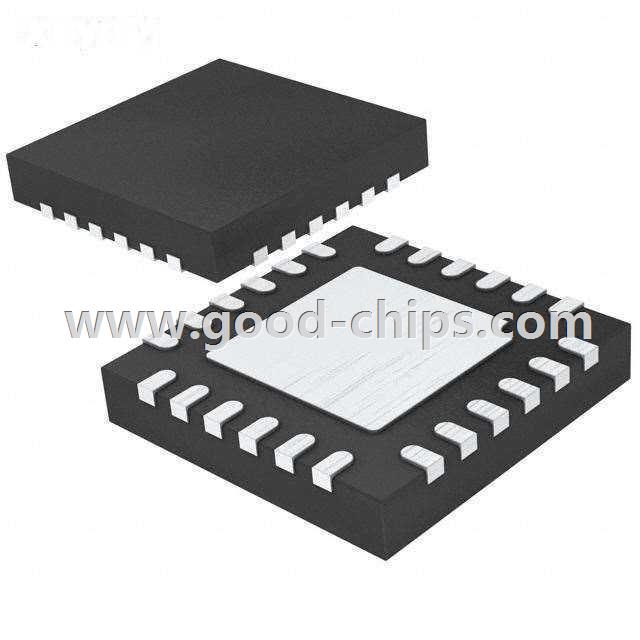

| Package / Case | 24-WFQFN Exposed Pad | |
| Supplier Device Package | 24-QFN (4x4) | |
| Standard Package | 91 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | LTC3866EUF#PBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
LTC3866EUF#PBF is in stock for immediate shipping now. We are the distributor of Linear Technology all series components. The condition of LTC3866EUF#PBF is new and unused, you can buy LTC3866EUF#PBF Linear Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for LTC3866EUF#PBF.
